RW10, RXWO-35KV/0.5A Outdoor High-voltage Current-limiting Fuse | 35kV Transmission Line and Transformer Protection

Product Overview

High-voltage fuses are suitable for short-circuit and overload protection of transmission lines and power transformers. They are simple and reliable devices for protecting power equipment from damage. The RW10/RXWO-35KV/0.5A outdoor high-voltage current-limiting fuse, with its excellent current-limiting characteristics and high breaking capacity, is widely used in 35kV power systems.

The outdoor high-voltage current-limiting fuse consists of a fuse link, porcelain housing, clamping flange, post insulator, and terminal caps. The terminal caps and fuse link are pressed into the porcelain housing, and the porcelain housing is fixed to the post insulator with the clamping flange.
The fuse link uses materials with high silicon oxide content as the arc extinguishing medium and small-diameter metal wire as the fuse element. When an overload or short-circuit current passes through the fuse link, the fuse element melts immediately, and the arc occurs in several parallel narrow gaps. The metal vapor from the arc penetrates the quartz sand and is vigorously deionized, rapidly extinguishing the arc. Therefore, this fuse has good performance and high breaking capacity.

Installation and Operation

• The fuse can be installed horizontally or vertically.
• Do not connect the fuse link to the line if its data does not match the line's operating voltage and rated current.
• After the fuse link operates, the user can remove the terminal caps and replace the fuse link with one of the same specifications and performance requirements.

Technical Parameters

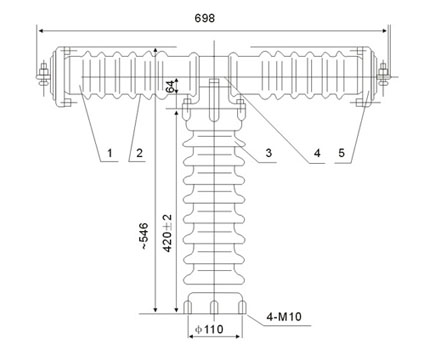

Appearance Dimensions

1. Fuse link 2. Porcelain housing 3. Post insulator 4. Clamping flange 5. Terminal cap

Ensure that for the RW10/RXWO-35KV/0.5A outdoor high-voltage current-limiting fuse, during installation of the RW10/RXWO-35KV outdoor current-limiting fuse, tighten the base bracket and cross-arm bolts. The contact pressure at both ends of the fuse tube should be 60±10N. Accurately select the fuse link rated current according to the rated capacity of the protected equipment. During operation, inspect the exterior for cracks or bulges.
