RW Series Drop-out Fuse Links | New Type Latching Fuse Links Standard Fuse Links 10-66kV

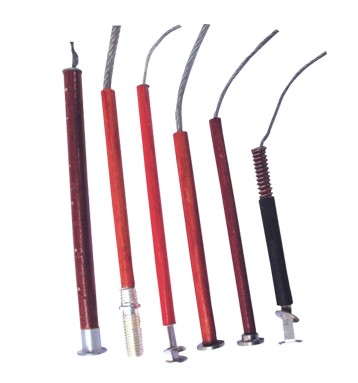

RW series drop-out fuse links

New Type Latching Fuse Link

New Type Latching Fuse Link

Uses a new type "T" type fuse element with a melting rate of 10-13. This product is suitable for RW6-66KV and RW5-35kV drop-out fuses. The RW series drop-out fuse links, with their excellent fusing characteristics, provide reliable overload and short-circuit protection for power systems.

Non-Latching Standard Fuse Link

Uses traditional silver-copper alloy with a melting rate of 10-13. This product is suitable for RW1-10, RW3, RW4, RW5, RW7 and other drop-out fuses.

Standard Latching Fuse Link

Uses traditional silver-copper alloy with a melting rate of 10-13. This product is suitable for RW10, RW11, RW13, RW20, PRWG1, PRWG2 and other drop-out fuses.

BR1, BR2, BRW, BRN, BRW2, BR, BR8W, RNG, BR2W, RW type fuses are used for internal fault protection of single capacitors in star-connected capacitor banks in power systems up to 10kV. They can reliably and quickly disconnect faulty capacitors, thus avoiding explosion accidents that may be caused by internal component breakdown in capacitors, ensuring the continued safe operation of the power grid.

Ensure that for the RW series drop-out fuse links, during installation, crimp both ends of the fuse link firmly but not too tightly. Ensure good contact between the upper and lower contacts of the fuse tube without sticking. After the fuse tube operates, replace it with a fuse link of the same specification. It is strictly forbidden to arbitrarily increase the rated value or use copper or aluminum wire as a substitute.
