GN30-12(D)/630A, 1250A Rotary Indoor High Voltage Disconnecting Switch | 12kV Indoor High Voltage Switchgear

Overview

GN30-12 rotary indoor high voltage disconnecting switch is a new type of rotary blade disconnecting switch. Its main structure consists of two sets of insulators and contacts fixed on the upper and lower planes of a three-phase common base, achieving opening and closing through rotary blade movement. GN30-12D switch is based on GN30-12 with additional earthing blade, meeting the needs of different power systems. This product features compact design, small space occupation, strong insulation capability, easy installation and adjustment, and its performance complies with GB1985-89 "AC High Voltage Disconnecting Switches and Earthing Switches". It is suitable for rated voltage 10kV AC 50Hz and below indoor systems for making and breaking circuits under voltage and no-load conditions. Can be used with high voltage switchgear or independently. GN30-12(D)/630A-1250A Rotary Indoor High Voltage Disconnecting Switch achieves switching between connected, isolated and earthed three positions through contact rotation, saving cabinet space, suitable for 12kV fixed-type switchgear.

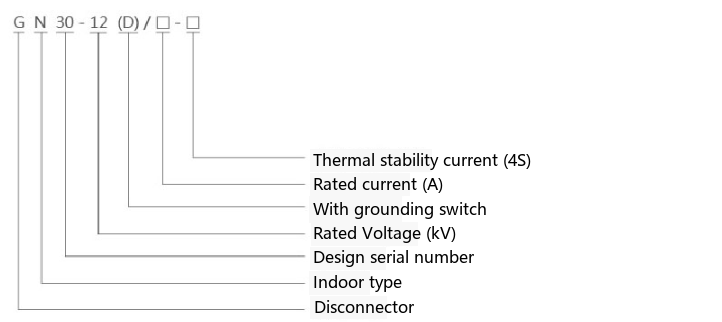

Model Meaning

Service Environment Conditions

◆ Altitude: not exceeding 1000m;

◆ Air temperature: upper +40degC; lower -10degC;

◆ Relative humidity: daily average ≤95%; monthly average ≤90%;

◆ Seismic intensity: not exceeding 8 degrees;

◆ Pollution level: places without severe dust, chemical corrosion and explosive materials;

◆ Installation site: places without frequent severe vibration.

Main Technical Parameters

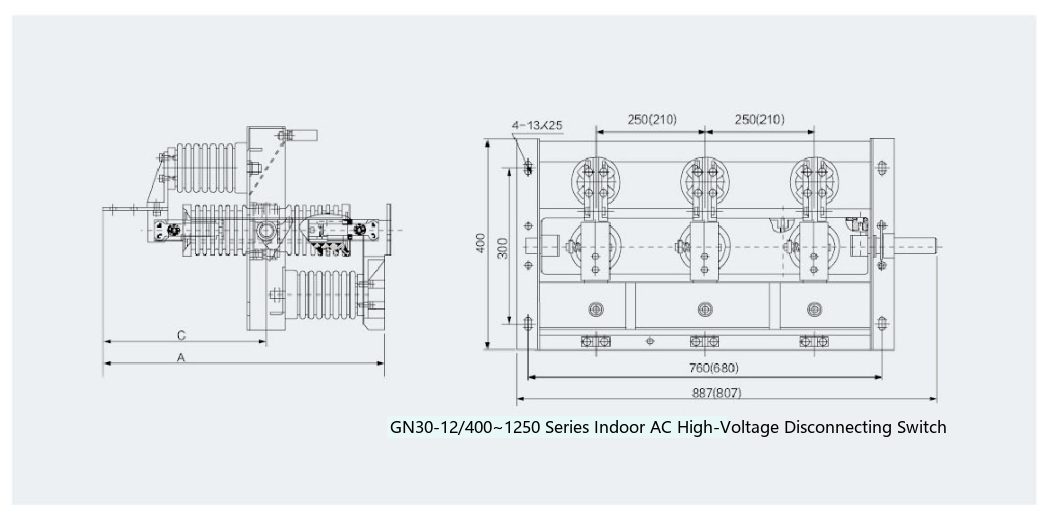

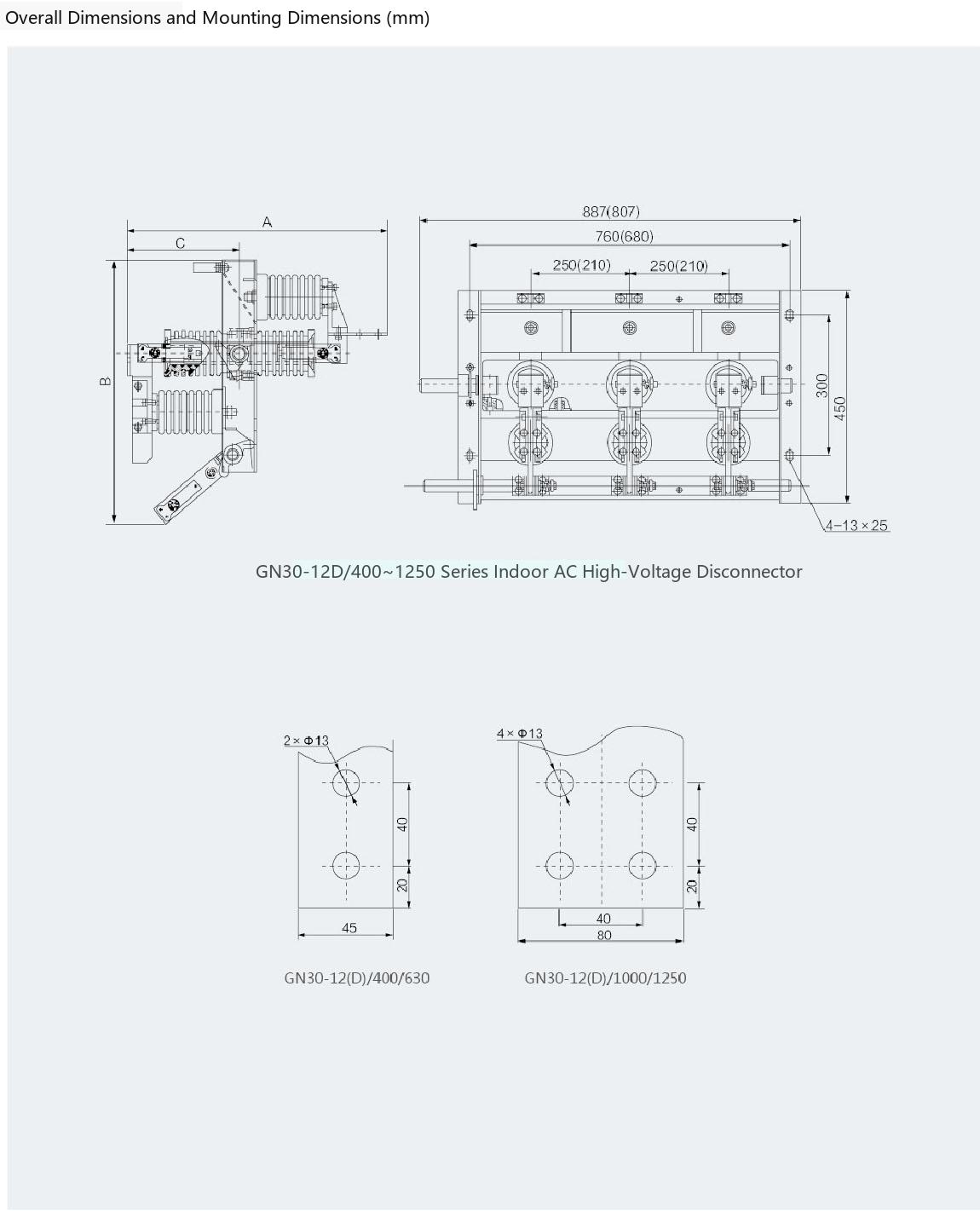

Outline and Installation Dimensions (mm)

Ensure that during maintenance of GN30-12(D)/630A, 1250A Rotary Indoor High Voltage Disconnecting Switch... GN30-12(D) rotary three-position disconnecting switch installation requires contact rotation angle 125deg calibrated with mechanism stroke, insulation partition intact without carbonization, connected/isolated/earthed three-position indication clear without confusion, "five-prevention" functions factory-tested individually.
