GW1-12DW/630A Outdoor High Voltage Disconnecting Switch | 12kV Line No-load Circuit Making and Breaking

Overview

GW1 outdoor high voltage disconnecting switch (hereinafter referred to as disconnecting switch) is suitable for installation on outdoor 12kV lines for making and breaking circuits with voltage and no load. GW1-12DW/630A Outdoor High Voltage Disconnecting Switch adopts single-column vertical opening/closing structure with built-in earthing blade, operated by manual operating rod, and is the standard isolation configuration for 10kV overhead line maintenance.

This disconnecting switch fully considers different user needs and is available in two types: with earthing blade and without earthing blade. The switch with earthing blade is equipped with CS□ manual mechanism, which can prevent misoperations such as closing earthing switch with live line and closing disconnecting switch with earthing wire connected, and operators do not need to separately connect earthing wires. This disconnecting switch is available in standard type and anti-pollution type. The anti-pollution type can meet the requirements of severe pollution areas and effectively solve the pollution flashover problem during operation. The product complies with GB1985 and GB/T11022 standards.

Service Environment Conditions

1. Altitude not exceeding 1000m;

2. Upper ambient temperature +40degC, lower -25degC;

3. Places without conductive or chemically active gases and vapors;

4. Places without fire, explosion hazards or severe pollution;

5. Places not subject to severe vibration or impact (such as near electric picks or dredgers).

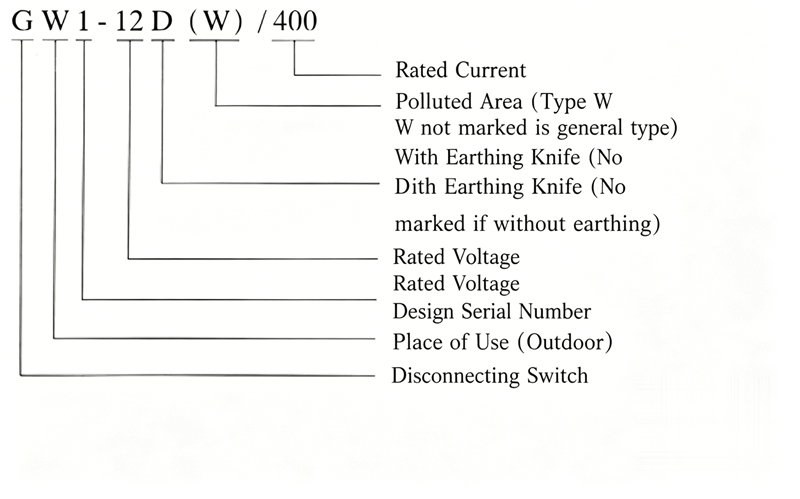

Model and Meaning

Main Technical Parameters

Note: Earthing switch is the same as the main switch.

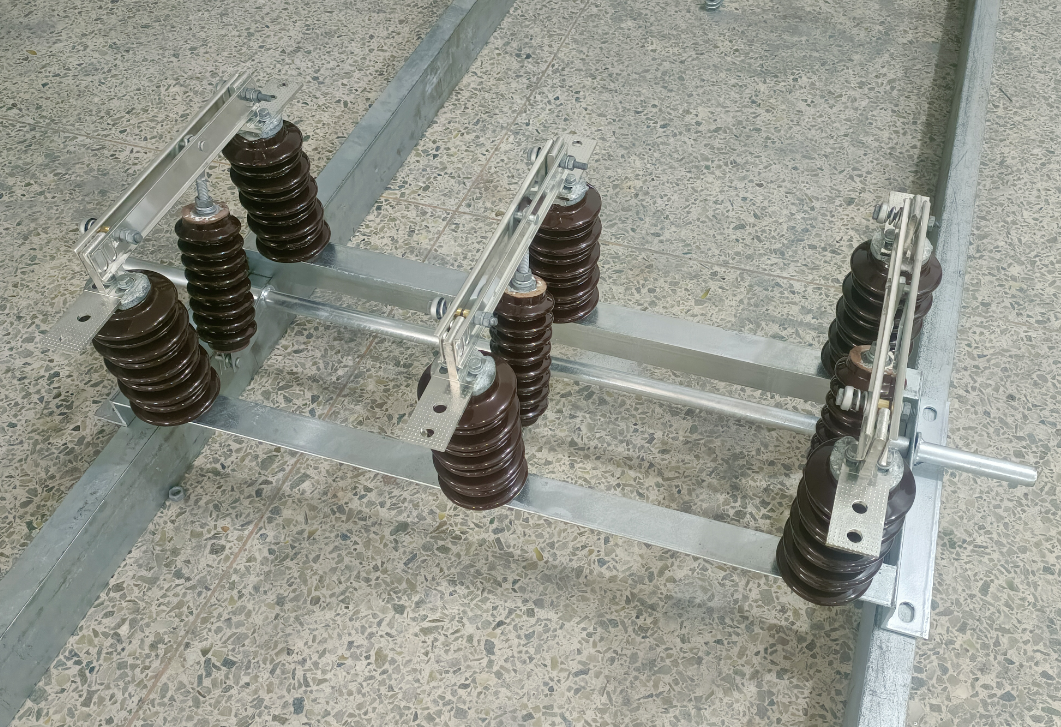

Main Structure Description

The disconnecting switch consists of three single-pole switches. Each single-pole disconnecting switch has the same components, including base, support and operating insulators, front and rear fixed contacts, blade and arcing horns. According to user needs, the type with earthing blade is equipped with CS□ operating mechanism, and the type without earthing blade is equipped with CS8-5 operating mechanism. The product has large isolating gap and simple and reliable operation.

When there is no circuit breaker on the line or the circuit breaker fails, the disconnecting switch is allowed to make and break under the following conditions:

Making and breaking charging current on busbar equipment;

Making and breaking no-load current of power transformers (when the transformer capacity does not exceed 750kVA).

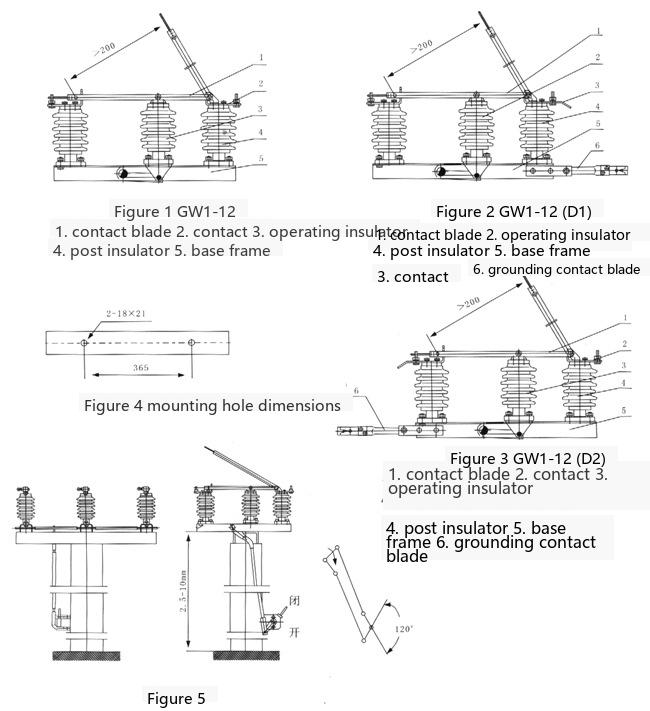

Outline and Installation Dimensions

Ordering Instructions

Please specify when ordering:

1. Product name, model, rated voltage and rated current;

2. Type: standard type or anti-pollution type;

3. If there are other special requirements, they must be negotiated.

Ensure that during maintenance of GW1-12DW/630A Outdoor High Voltage Disconnecting Switch... GW1-12DW outdoor single-column disconnecting switch installation requires blade insertion depth ≥90%, mechanical interlock between earthing blade and main blade reliable and cannot close simultaneously, operating rod insertion hole without deformation or enlargement, support insulator cleaning cycle based on pollution level every six months to one year.
