Outdoor Floor-Standing Prepayment Metering Device

Product Overview

The outdoor floor-standing prepayment metering device is a 10kV outdoor floor-standing integrated intelligent metering complete device. It is installed as a complete cabinet on the ground, integrating a high-voltage vacuum switch, combined metering instrument transformers, an intelligent prepayment energy meter, and a remote load control terminal. It achieves four major functions: high-voltage precision metering, prepayment control, line protection, and fault sectioning. It is mainly used in high-supply high-meter scenarios such as dedicated transformer industrial users, industrial parks, mining areas, and suburban public distribution. The equipment is housed in a fully sealed outdoor cabinet with an IP54 protection level, resistant to rain, snow, and sand. It eliminates the need for civil construction of a metering room and can be put into operation immediately after on-site cable connection.

Scope of Application

• Rated voltage 10kV, rated frequency 50Hz neutral point non-effectively grounded distribution systems;
• Power metering for dedicated transformers in industrial and mining enterprises, agricultural parks, commercial complexes, and suburban village-level public distribution transformers;
• Power consumption assessment, property boundary demarcation, anti-theft control, and remote intelligent charge-control renovation projects by power supply departments;
• Outdoor open-air installation without a distribution room, and temporary construction site high-voltage power metering scenarios.

Environmental Conditions for Use

• Ambient temperature: -40C～+40C, 24h average temperature ≤+35C;
• Altitude: installation altitude ≤1000m, customized insulation upgrade solutions available for ultra-high altitudes;
• Relative humidity: daily average humidity ≤95%, monthly average humidity ≤90%, no condensation or standing water;
• Pollution class: up to Class III; stainless steel cabinets available for coastal salt fog and chemical pollution environments;
• Seismic intensity: ≤8 degrees, installation site free from severe vibration, flammable, explosive, or corrosive gases.

Product Structure Composition

• Cabinet part: floor-standing carbon steel spray-painted / 304 stainless steel outdoor weatherproof cabinet, divided into high-voltage chamber, metering chamber, and operation chamber with seal and anti-theft design;
• High-voltage switch unit: ZW32/ZW43 intelligent vacuum circuit breaker, equipped with an electric operating mechanism, supporting remote opening and closing;
• Metering instrument transformers: V/V connected combined voltage and current transformers, metering accuracy 0.2S class, stable error;
• Prepayment measurement and control unit: intelligent charge-control meter + 4G remote acquisition terminal, compatible with both IC card and mobile online recharge modes;
• Auxiliary accessories: live display device, fault indicator, secondary wiring terminals, temperature control and dehumidification device, grounding protection components.

Product Functions and Features

Prepayment Control Function

• Prepayment before use, supporting IC card on-site recharge and 4G remote online payment, with time-of-use tariff settings for peak, flat, and valley periods;
• Low balance warning notification, SMS reminder to users when remaining balance reaches the warning value, automatic tripping on arrears, remote closing for power restoration after recharge;
• Supports limited overdraft usage, with customizable overdraft limits in the background. Overdrawn amounts are automatically deducted upon bill payment.

Precision Metering and Anti-Theft

• 0.2S class high-precision combined instrument transformers + Class 1 intelligent meter, bidirectional forward and reverse energy metering, permanent data storage during power outages;
• Fully sealed and sealed metering compartment, remote alarm on cover opening, preventing unauthorized wiring and tampering;
• Real-time acquisition of three-phase voltage, current, and power data, with abnormal electricity usage alerts pushed to the management platform.

Protection and Maintenance Advantages

• Integrated short-circuit, overload, and zero-sequence earth fault protection, automatic tripping on faults, achieving user-side fault sectioning and avoiding upstream tripping;
• 4G full-network remote communication, online viewing of energy consumption, usage curves, and equipment status from the backend, eliminating manual meter reading;
• Complete factory integration and commissioning, requiring only incoming and outgoing cable connections on-site, shortening construction cycles and reducing civil costs;
• Built-in dehumidification and temperature control device to prevent secondary components from moisture damage in humid environments, extending outdoor service life.

Main Technical Parameters

Cabinet Material Selection

• Standard type: cold-rolled steel plate outdoor electrostatic spray-painted cabinet, cost-effective, preferred for inland standard conditions;
• Anti-corrosion type: 304 stainless steel full cabinet, specially for coastal salt fog and chemical corrosion areas, rust-resistant service life ≥15 years;
• Non-standard customization: cabinet dimensions, length and width, and incoming/outgoing directions (top-in top-out / bottom-in bottom-out) can be customized based on site area and requirements.

Ordering Information

• Rated voltage (6kV/10kV), transformer capacity, and CT ratio;
• Cabinet material (carbon steel spray-painted / 304 stainless steel), incoming/outgoing method;
• Closing power supply type (AC220V/DC220V), whether to include a temperature and humidity controller;
• Recharge method (IC card only / IC card + remote 4G dual control), and requirements for supporting backend management system.

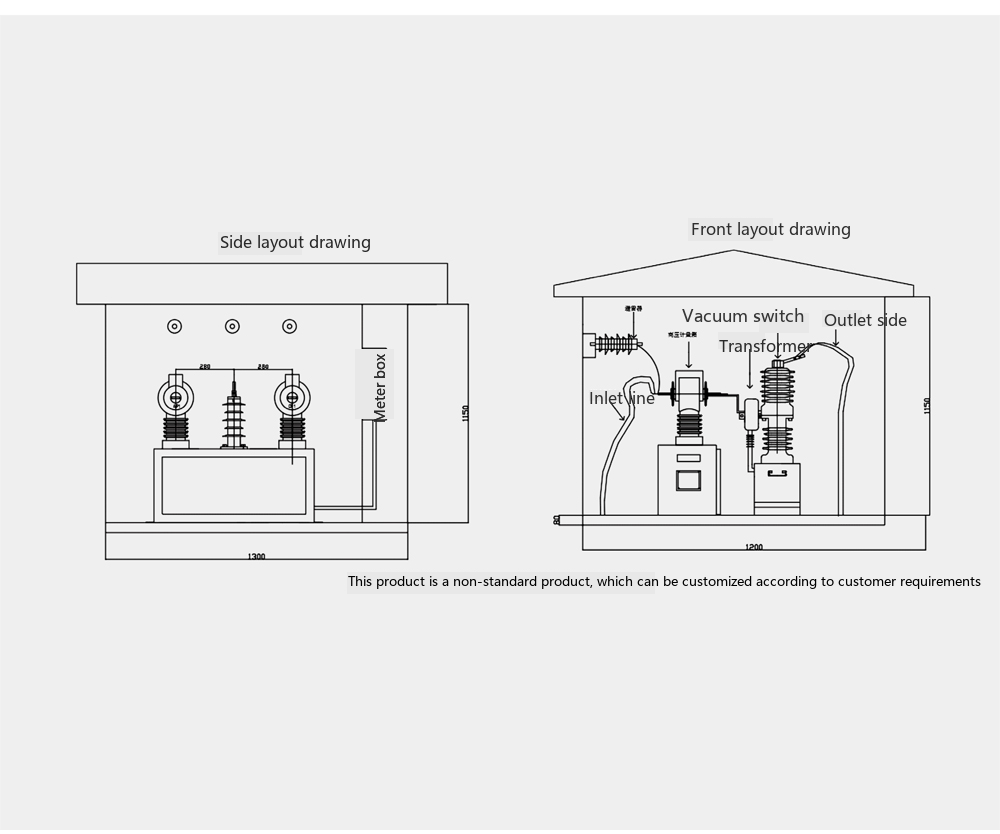

Floor-Standing Intelligent Section Switch (Section Switch Integrated Prepayment Metering Device) External Structure Diagram
