The GAOSUOJL-12 high-voltage metering cabinet (box) (hereinafter referred to as the "floor-standing metering box") is suitable for electric energy metering of high-voltage cable incoming users in AC three-phase 50Hz, rated voltage 10kV power systems. It can be installed on roadside lawns in parks, residential communities, and industrial and mining areas. The meter reading and breaker opening/closing operations can be conveniently performed by directly opening the door.

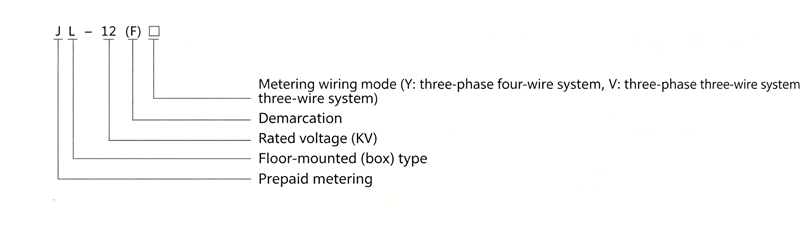

The floor-standing metering box mainly consists of a vacuum circuit breaker, cast-type combined instrument transformer, arrester, live display device, and intelligent control device. Its metering methods include three-phase three-wire and three-phase four-wire systems. A zero-sequence current transformer can be configured for grounding protection. The floor-standing metering box complies with technical standards such as GB/T 1984-2014 "High-voltage AC Circuit Breakers", DL/T 402-2016 "High-voltage AC Circuit Breakers", DL/T 403-2000 "Technical Conditions for Ordering 12kV~40.5kV High-voltage Vacuum Circuit Breakers", GB/T 17201-2007 "Combined Instrument Transformers", and DL/T 721-2013 "Remote Terminal Units for Distribution Automation Systems".
◇ Altitude: not exceeding 1000m; if the altitude is higher than 1000m, the rated insulation level should be adjusted accordingly;
◇ Ambient temperature: upper limit +45C, lower limit -40C, daily temperature difference upper limit 25K;
◇ Humidity: daily average relative humidity ≤95%, monthly average relative humidity ≤90%;
◇ Solar radiation intensity: ≥0.1W/cm2;
◇ Wind speed: 34m/s;
◇ Wind pressure: 700Pa;
◇ Pollution class: e-level;
◇ Ice thickness: ≤10mm;
◇ Earthquake resistance: horizontal acceleration 0.3g, vertical acceleration 0.2g.
◇ Small footprint, low investment, high cost-effectiveness;
◇ Functions include automatic power transmission, data processing, display, storage, alarm, and automatic power cut-off;
◇ Equipped with anti-theft devices, reducing unnecessary power losses for the power system;
◇ Prepayment function to avoid arrears in electricity charges;

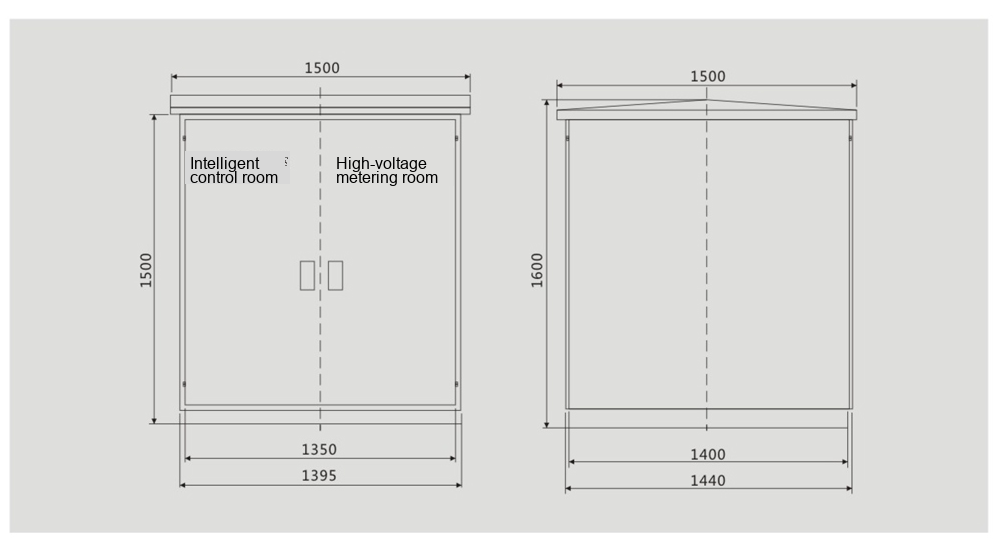

◇ The enclosure is a stainless steel floor-standing structure, aesthetically pleasing and easy to install.
| No. | Item | Unit | Technical Parameter |
|---|---|---|---|
| 1 | Rated Frequency | Hz | 50 |
| 2 | Rated Voltage | KV | 12 |
| 3 | Rated Current | A | 630/1250 |
| 4 | Rated Short-time Power Frequency Withstand Voltage | KV/min | Phase-phase, earth (dry test): 34/1 |
| Across isolating gap (dry test): 42/1 | |||
| Phase-phase, earth (wet test): 48/1 | |||
| Secondary circuit to earth: 2/1 | |||
| 5 | Rated Lightning Impulse Withstand Voltage | KV | Phase-phase, earth: 75 |
| Across isolating gap: 85 | |||
| 6 | Rated Short-circuit Breaking Current | KA | 20/25 |
| 7 | Rated Short-circuit Making Current (Peak) | KA | 50/63 |
| 8 | Rated Short-time Withstand Current and Duration | KA/S | (20/25)/4 |
| 9 | Rated Peak Withstand Current | KA | 50/63 |
| 10 | Number of Rated Short-circuit Breaking Operations | times | 30 |
| 11 | Rated Operating Voltage and Auxiliary (Control) Circuit Rated Voltage | V | AC220, DC220 |
| 12 | Mechanical Life | times | 10000 |
