KYN61-40.5KV Armored Withdrawable AC Metal-enclosed 35KV Switchgear

Overview

The KYN61-40.5 armored withdrawable AC metal-enclosed switchgear (hereinafter referred to as switchgear) is an indoor complete distribution device for three-phase AC 50Hz, rated voltage 40.5kV. It is used for receiving and distributing electrical energy in power generation, substations, and industrial and mining enterprises, providing control, protection, and monitoring functions for circuits. It can also be used in locations with frequent operations.

This switchgear complies with GB3906-2006 "3.6kV~40.5kV AC Metal-enclosed Switchgear and Controlgear", GB/T11022-2011 "High-voltage Switchgear and Controlgear Standards", and IEC60298 "AC Metal-enclosed Switchgear and Controlgear for Rated Voltages Above 1kV and Up to 52kV".

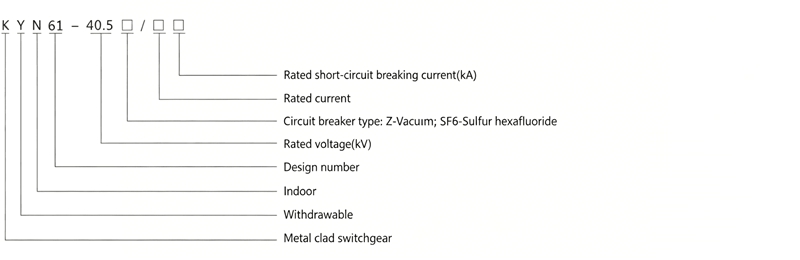

Product Model Description

Operating Conditions

◇ Ambient temperature: upper limit +40C, with the average value measured within 24h not exceeding 35C, lower limit -10C;

◇ Altitude: not exceeding 1000m;

◇ Relative humidity: daily average not exceeding 95%, monthly average not exceeding 90%;

◇ Seismic intensity: not exceeding 8 degrees;

◇ Water vapor pressure: daily average not exceeding 2.2kPa, monthly average not exceeding 1.8kPa;

◇ Surrounding environment: free from fire, explosion hazards, heavy pollution, chemical corrosion, and severe vibration.

Main Features

◇ Cabinet structure uses assembled type, circuit breaker uses floor-standing trolley structure;

◇ Equipped with composite insulated vacuum circuit breakers, with good interchangeability and simple replacement;

◇ The trolley frame is equipped with a screw-nut推进 mechanism, allowing easy movement of the trolley and preventing damage to the推进 structure due to misoperation;

◇ All operations can be performed with the cabinet door closed;

◇ The interlocking between the main switch compartment, trolley, and switchgear door uses强制 mechanical interlocking, meeting "five-prevention" functions;

◇ The cable compartment has ample space for connecting multiple cables;

◇ Fast earthing switch for earthing and closing short-circuit circuits;

◇ Enclosure protection level IP3X, protection level IP2X when the trolley compartment door is open;

◇ Product complies with GB 3906-2006, DL/T 404-2007, and references IEC298 standards.

Technical Parameters

◇ Main Technical Parameters of Vacuum Switchgear

◇ Main Technical Parameters of Vacuum Circuit Breaker

◇ Main Technical Parameters of Spring Operating Mechanism

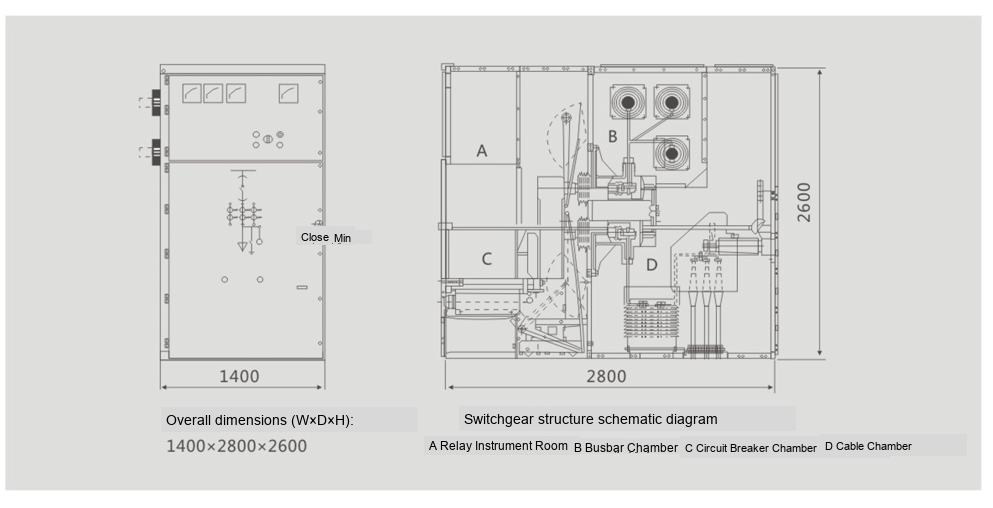

Switchgear External Dimensions

Switchgear Installation

◇ Switchgear height: ≥4500mm;

◇ Can be fixed to the foundation with bolts or welding;

◇ Electrical room height: ≥4500mm;

◇ Switchgear weight approx. 1800kg;

◇ Distance from back of cabinet to wall: ≤150mm;

◇ Switchgear operating corridor width (single row): ≥3000mm, double row (face to face) ≥4000mm.

◇ The embedded channel steel on the foundation should not protrude more than 3mm above the ground;

◇ Foundation concrete strength: ≥150mm/m2;

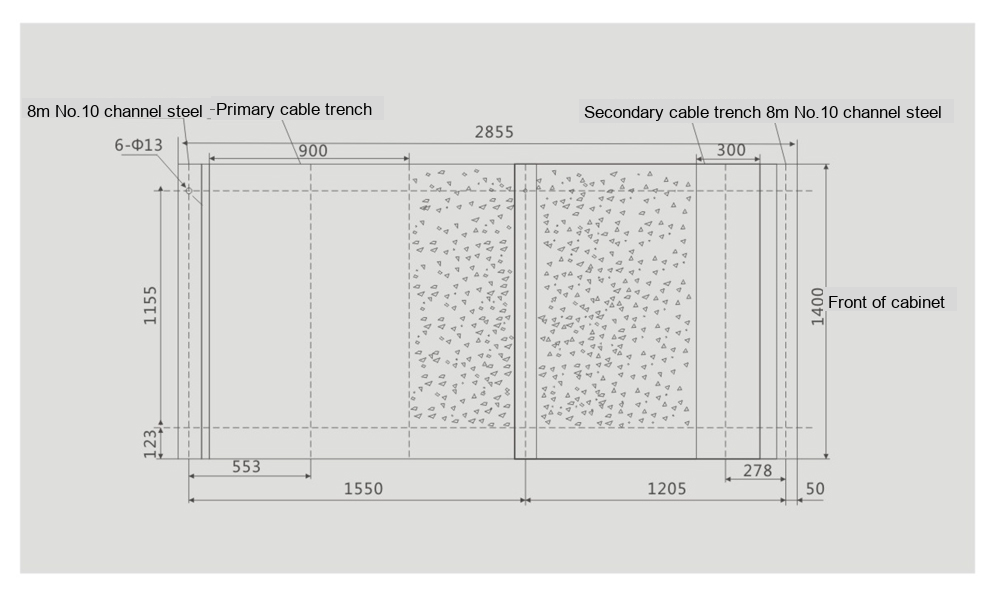

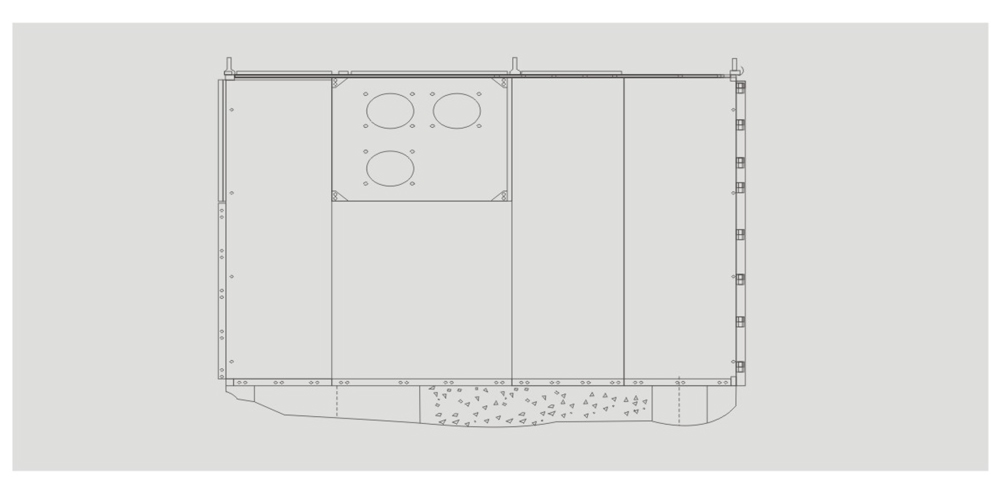

Switchgear Installation Foundation Diagram

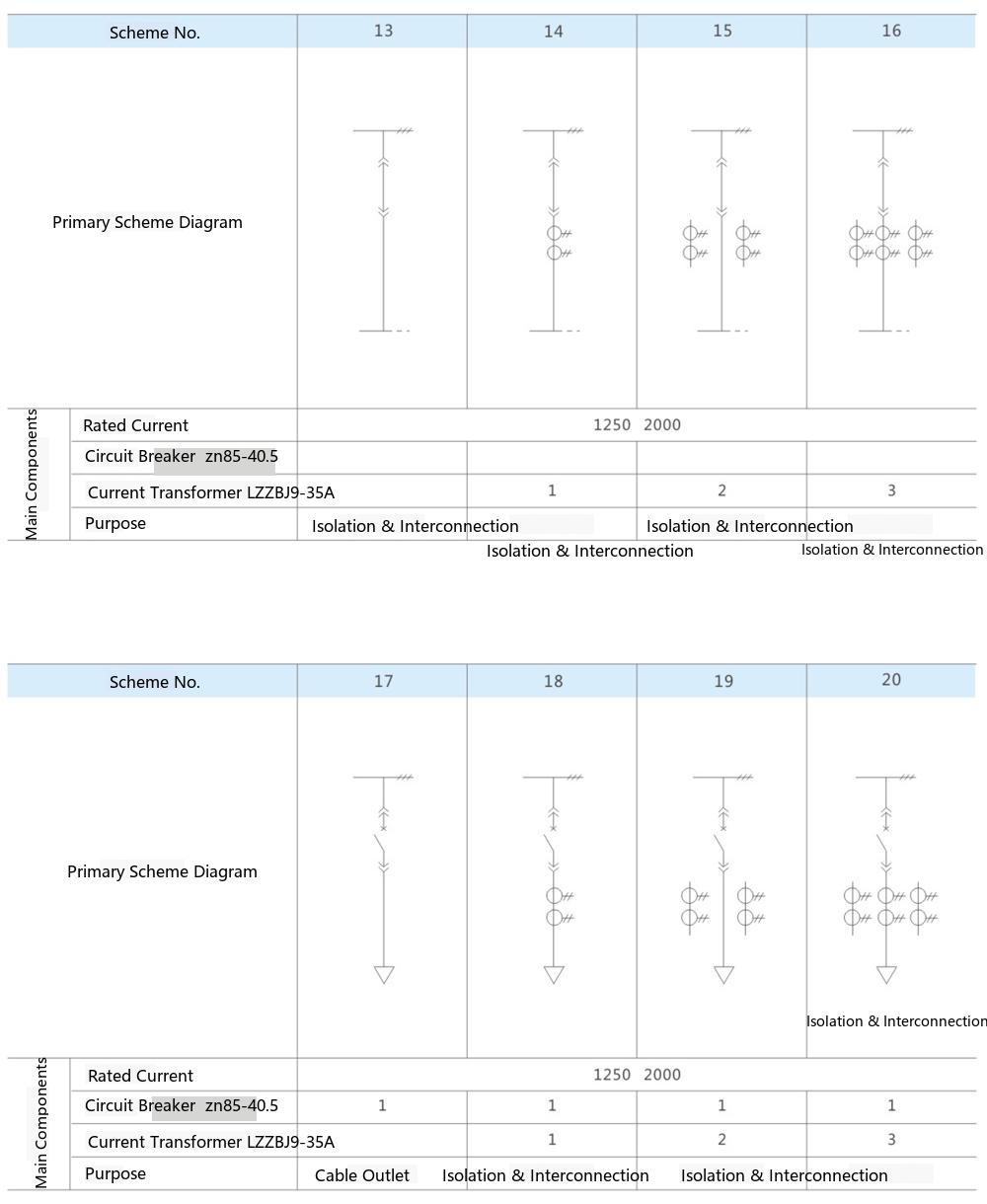

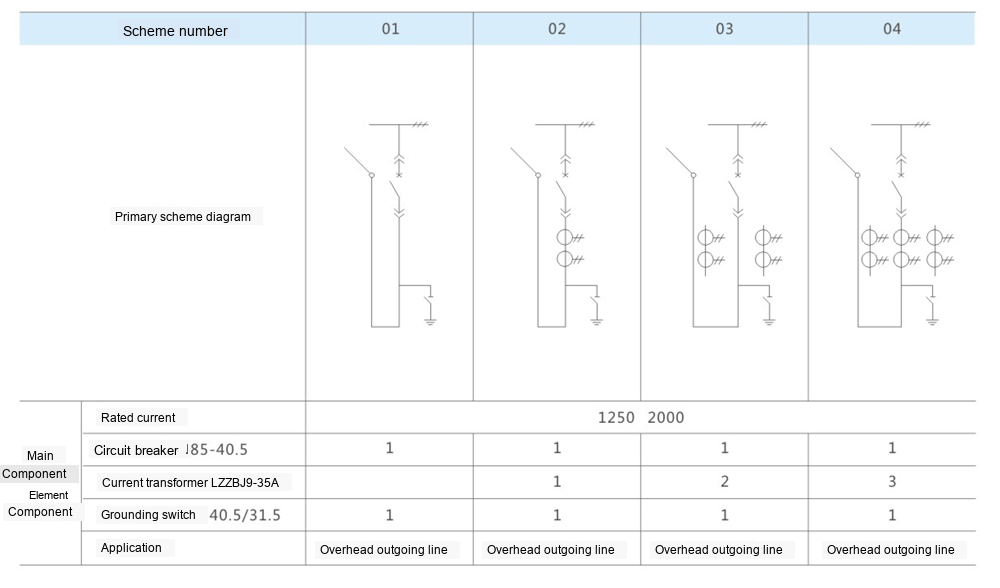

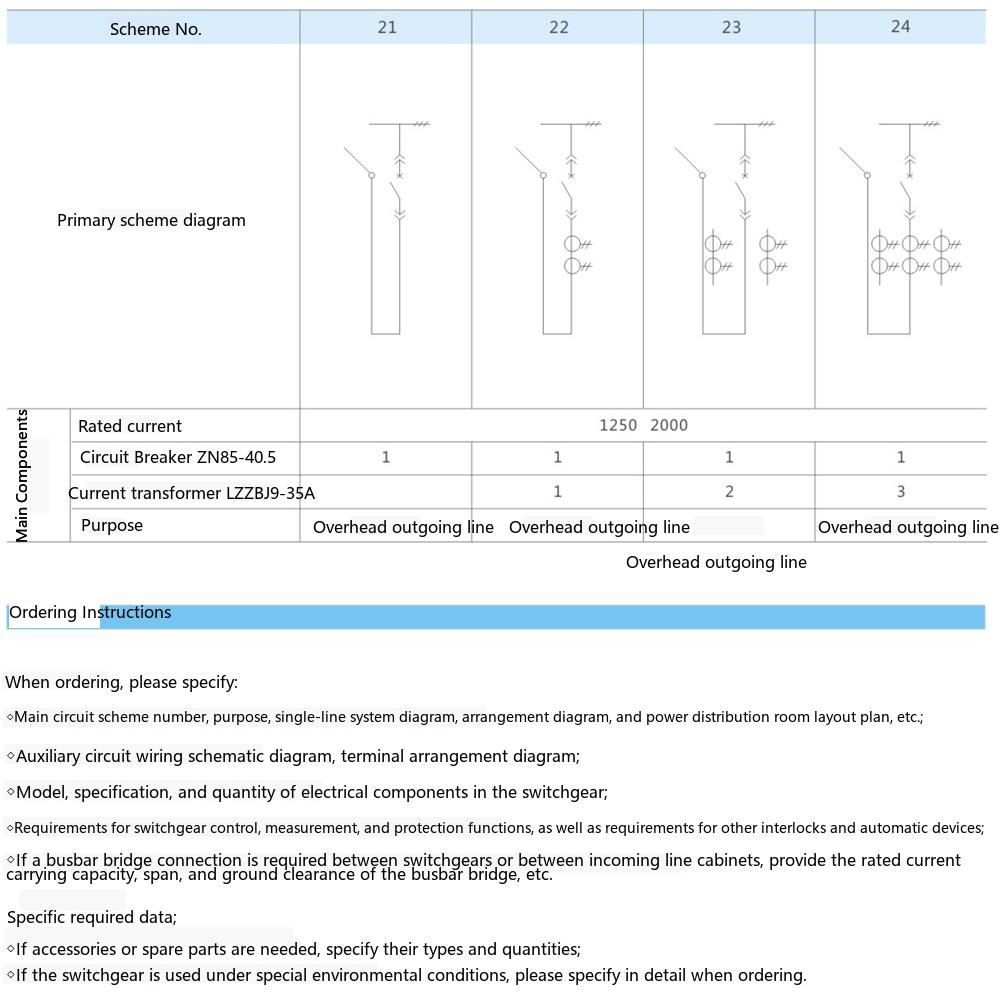

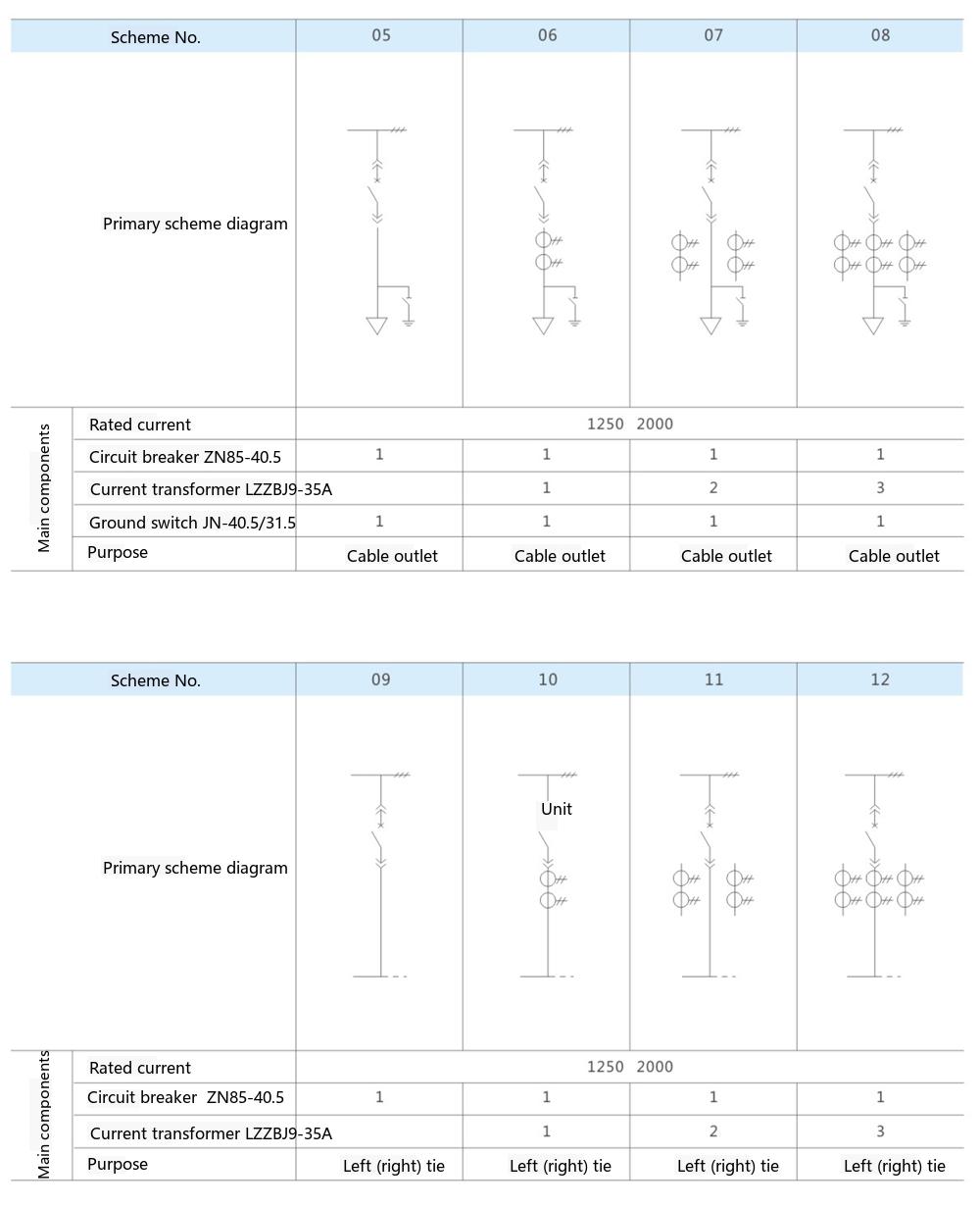

Primary Schemes
