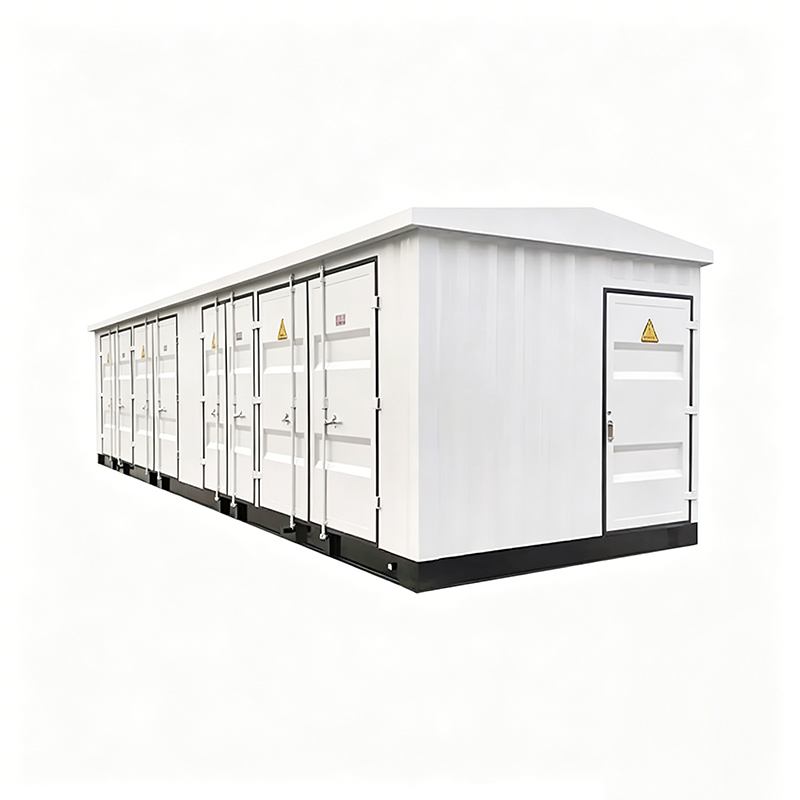

10kV~40.5kV Modular Intelligent Prefabricated Cabin
Features of Modular Intelligent Prefabricated Cabin
Provides a fully modular prefabricated solution for substations, reducing floor space by 30% and shortening the system design, installation, and commissioning cycle by 70%;
Uses a fully metal prefabricated cabin equipped with an intelligent environmental control system, suitable for complex climates and geographical environments such as high temperature, high humidity, and sandstorms;
Supports access to the eCloud energy cloud platform, providing remote health diagnosis, fault analysis, maintenance guidance, and other functions, enabling unattended operation of the substation and full lifecycle management of equipment;
Reliable operation and guaranteed quality.
Application Fields
Booster stations for new energy fields such as wind power generation, photovoltaic power generation, offshore wind power, and distributed photovoltaic power generation
Power grid 10kV-40.5kV substations
Self-use substations for large industrial and mining enterprises
Comparison between Modular Intelligent Prefabricated Cabin and Traditional Substation
| Item |
Conventional Outdoor Substation |
Prefabricated Cabin Substation |
| Floor Space |
Approx. 3000 m2 |
Approx. 2000 m2 |
| Construction Period |
Approx. 3-4 months |
The entire station is fully pre-assembled; all equipment is factory prefabricated and only needs on-site installation,
short construction period, 1-2 months |
| Cable Usage |
Equipment is dispersedly arranged, requiring a large amount of primary and secondary cables |
Equipment is highly integrated, electrical distances are shortened, saving about 30% of cables |
| Environmental Requirements |
High environmental requirements; harsh areas with sandstorms,
condensation, etc., cause significant damage to equipment |
Uses fully metal cabin design, IP54 protection level, equipped with a comprehensive HVAC system,
can resist sandstorms and condensation, improving equipment reliability |
| Construction and Management Costs |
Many buildings, high construction costs;
equipment supplied by different manufacturers, high coordination and management costs |
Prefabricated design, no buildings in the entire station, low construction costs; all equipment provided by our company, responsible for all installation and commissioning, low management costs |
| Operation and Maintenance Costs |
Open design, greatly affected by environment, high operation and maintenance costs |
Enclosed design, basically unaffected by external conditions, low operation and maintenance costs |
