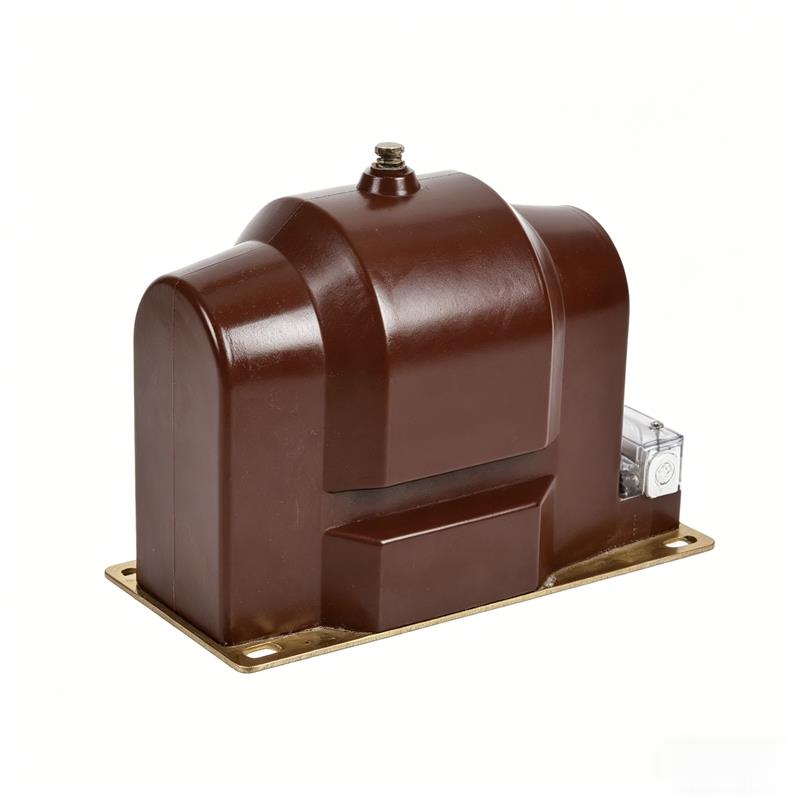

JDZX9-10 Voltage Transformer | Indoor Epoxy Resin Cast Voltage Transformer

Overview

The JDZX9-10 voltage transformer is a representative product of the JDZX9 series, along with JDZX9-3 and JDZX9-6. It is suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 3～10kV, for electric energy metering, voltage monitoring, and relay protection. The product complies with GB1207 "Voltage Transformers".

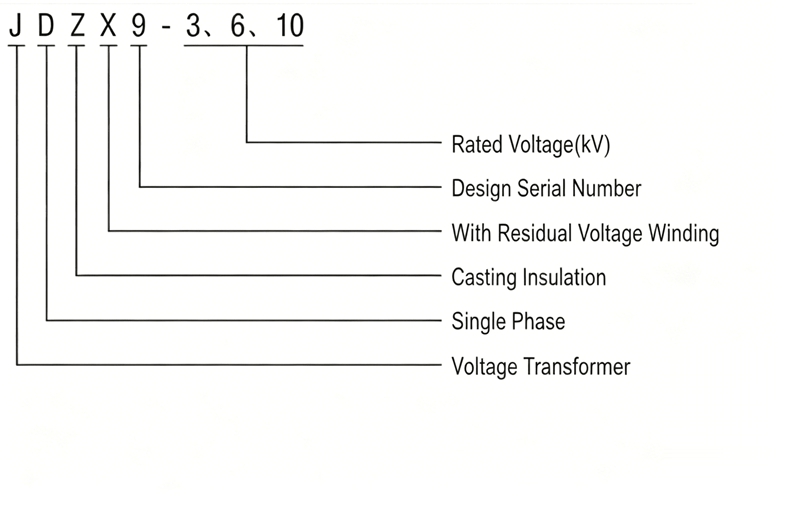

Model and Meaning

Normal Operating Conditions

Installation site: Indoor.

Ambient temperature: Maximum 40C; Minimum -5C; Daily average not exceeding 30C.

Atmospheric conditions: No heavy pollution in the atmosphere.

Technical Parameters

Structure and Features

This series of voltage transformers has a post-type structure, using epoxy resin fully enclosed casting, resistant to pollution and moisture. It is also suitable for use in tropical regions. The transformer does not require special maintenance, only periodic cleaning of surface contaminants. JDZX9-10 voltage transformers are equipped with a terminal box at the secondary terminal outlet. The terminal box has holes on the front and side for connection, ensuring safety and reliability. The product base is equipped with a grounding bolt and four mounting holes.

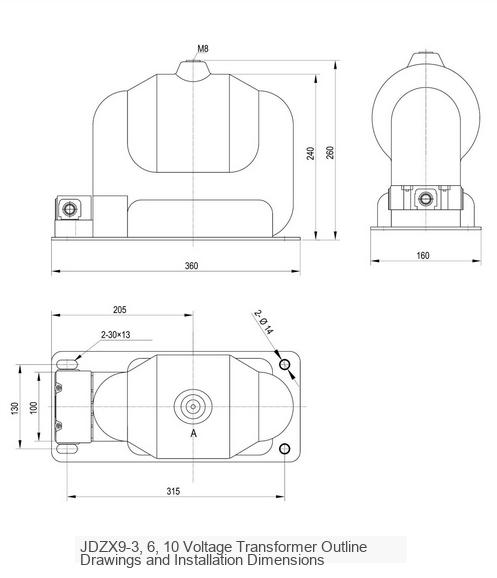

Outline Drawing and Installation Dimensions

Ensure that the JDZX9-10 voltage transformer has its primary winding reliably grounded during installation. The secondary terminal tightening torque should meet the requirements, and the nameplate ratio should match the system voltage. During operation, measure insulation resistance annually (≥1000MΩ with a 2500V megohmmeter), and partial discharge ≤10pC is considered合格.
