JDZ10-3, 6, 10kV Voltage Transformer | Indoor Epoxy Resin Cast Voltage Transformer

Overview

The JDZ10-3, 6, 10 voltage transformers are representative products of the JDZ10 series. They are suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 3～10kV, for electric energy metering, voltage monitoring, and relay protection. The product complies with GB1207 "Voltage Transformers".

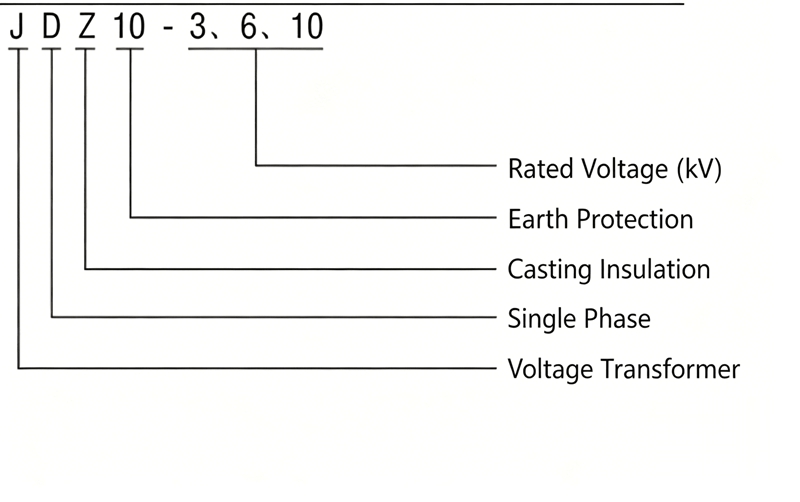

Model and Meaning

Normal Operating Conditions

Installation site: Indoor.

Ambient temperature: Maximum 40C; Minimum -5C; Daily average not exceeding 30C.

Atmospheric conditions: No heavy pollution in the atmosphere.

Technical Parameters

Structure and Features

This series of voltage transformers has a post-type structure, using epoxy resin fully enclosed casting, resistant to pollution and moisture. It is also suitable for use in tropical regions. The transformer does not require special maintenance, only periodic cleaning of surface contaminants. JDZ10-3, 6, 10 voltage transformers are equipped with a terminal box at the secondary terminal outlet. The terminal box has holes on the front and side for connection, ensuring safety and reliability. The product base is equipped with a grounding bolt and six mounting holes.

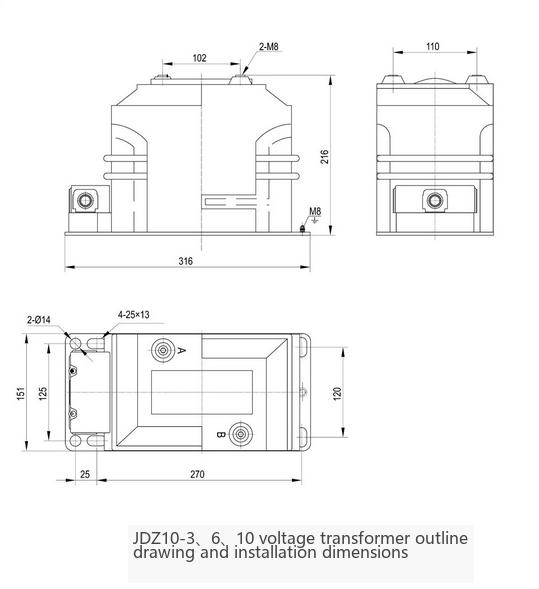

Outline Drawing and Installation Dimensions

Ensure that the JDZ10-3, 6, 10 voltage transformers have a switchable accuracy class combination of 0.5/3P, suitable for 3～10kV power systems. During installation, ensure the nameplate ratio and rated capacity match the system, and the secondary wiring polarity is correct. The secondary side must never be short-circuited, as this will burn the windings.
