Product Details

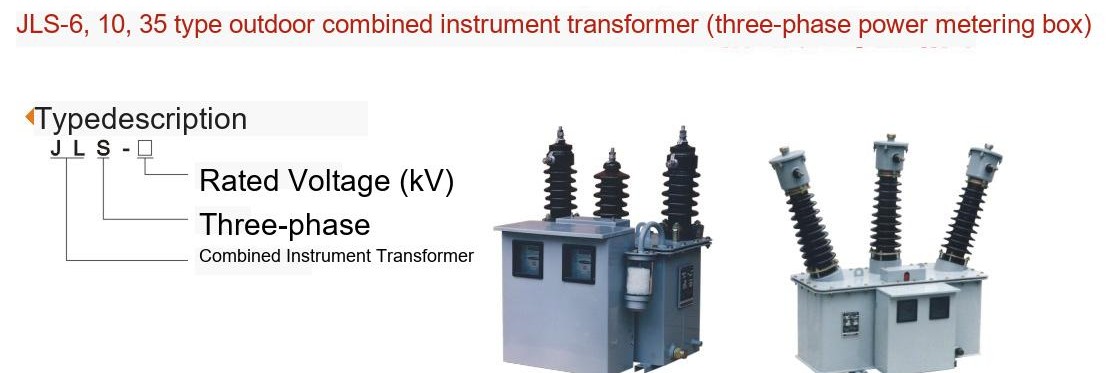

The JLS-35KV high-voltage electric energy metering box mainly consists of two parts: a combined instrument transformer and a meter box. The combined instrument transformer is composed of two or three single-phase voltage transformers and current transformers, using No. 25 transformer oil as the insulating medium. The primary and secondary terminals are mounted on the panel with porcelain bushings. The meter box is installed on the side of the combined instrument transformer and consists of one active watt-hour meter and one reactive watt-hour meter, offering advantages such as high metering accuracy, light weight, convenient installation, and anti-tampering.
Included models: JLS-3 high-voltage electric energy metering box, JLS-6 high-voltage electric energy metering box, JLS-10 high-voltage electric energy metering box, JLS-35 high-voltage electric energy metering box.
This electric energy metering box is suitable for three-phase power networks with outdoor rated voltages of 6, 10, 35kV and a rated frequency of 50Hz.
1. Product performance complies with GB17201-2006
2. Rated voltage: 6KV, 10KV, 35KV
3. Accuracy class: 0.5 and 0.2, 0.5S and 0.2S
4. Rated ratio: Voltage ratio 6000/100, 10000/100, 35000/100
Current ratio 5～300/5 (large current ratios can be customized)
Combined Instrument Transformer Technical Parameters
| Model | Rated Voltage Ratio | Rated Current Ratio | Frequency | Voltage Transformer Accuracy Class and Rated Output (VA) | Current Transformer Accuracy Class and Rated Output (VA) | Rated Insulation Level (KV) | Standard Code | ||
|---|---|---|---|---|---|---|---|---|---|
| Class 0.2 | Class 0.5 | Class 0.2 | Class 0.5 | ||||||
| JLS-3 JLS-6 JLS-10 |
3000/100 | 5～300/5 | 50 | 20 | 25 | 10 | 10 | 3.6/24/75 | GB1208-2006 GB1207-2006 GB17201-97 |
| 6000/100 | 5～300/5 | 50 | 20 | 25 | 10 | 10 | 7.2/32/75 | ||
| 6300/110 | 5～300/5 | 50 | 20 | 25 | 10 | 10 | 7.2/32/75 | ||
| 10000/100 | 5～300/5 | 50 | 25 | 25 | 10 | 10 | 12/42/75 | ||
| JLS-35 | 35000/100 | 5～300/5 | 50 | 50 | 50 | 10 | 10 | 40.5/95/185 | |
Type |
Rated transformation ratio(A) |
（VA） Accuracy class and rated output COSφ=0.8 |
1s thermal current (kA) |
Rated dynamic current(kA) |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|
| JLS-6 JLS-10 JLS-35 |
2.5~400/5 | 2×10 | 2×10 | 2×10(15) | 2×10(20) | 60I1n | 150I1n | |
Rated transformation ratio(V) |
（VA） Accuracy class and rated output COSφ=0.8 |
Thermal limiting output(VA) |
||||||
| 0.2 | 0.5 | 1 | ||||||
| 6000/100 | 2×20 | 2×30 | 2×50 | 300 | 95 | |||
| 10000/100 | ||||||||
| 35000/100 | 2×30 | 2×50 | 2×80 | 400 | 320 | |||

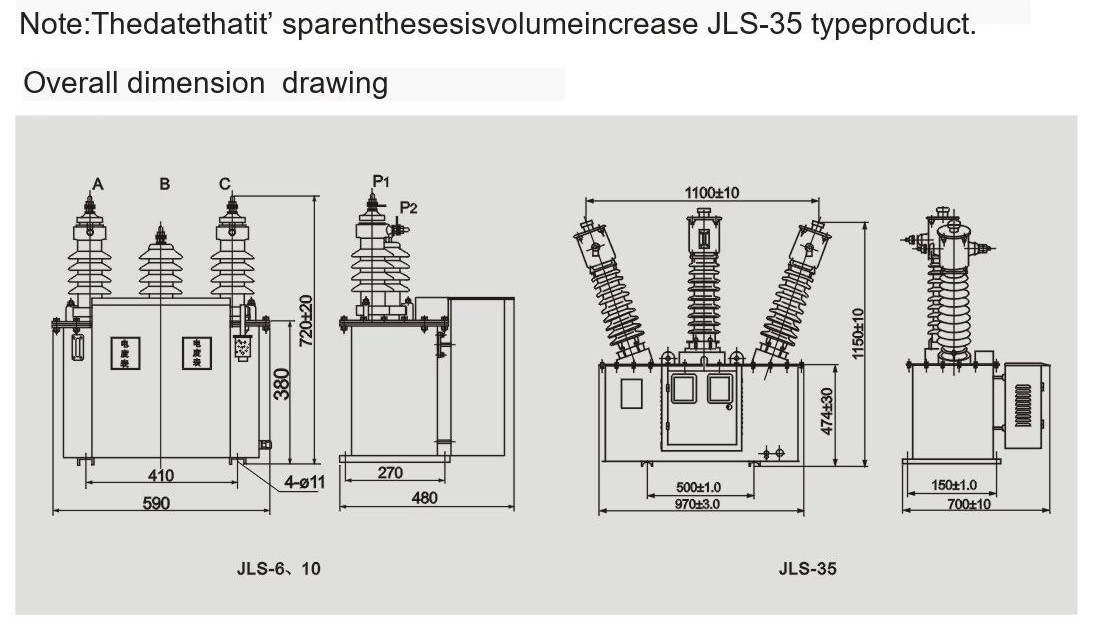

JLS-35KV Outdoor High-voltage Electric Energy Metering Box
