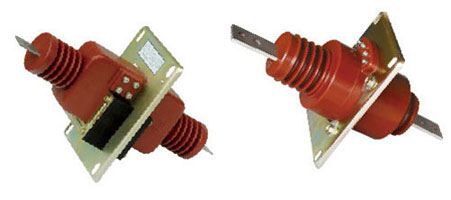

LA-10Q High-voltage Epoxy Cast Current Transformer

Overview

The LA-10Q current transformer is suitable for power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 10kV, for electric energy metering, current measurement, and relay protection. The product complies with GB 1208 "Current Transformers".

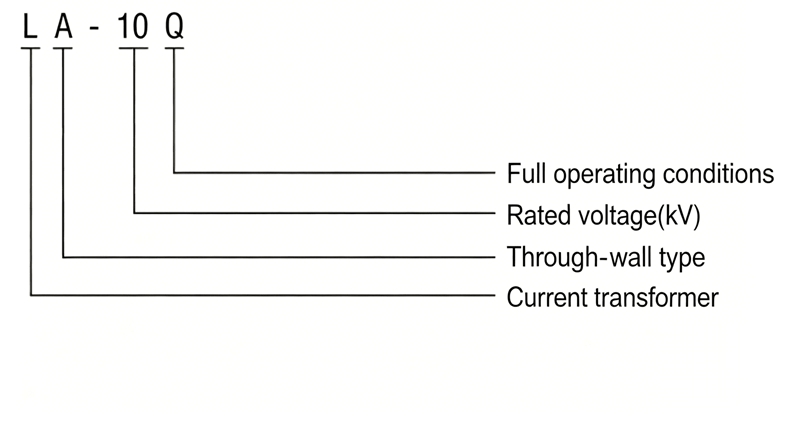

Model and Meaning

Normal Operating Conditions

Installation site: Indoor.

Ambient temperature: Maximum 40C; Minimum -5C; Daily average not exceeding 30C.

Atmospheric conditions: No heavy pollution in the atmosphere. The LA-10Q current transformer can operate stably for a long time under the above conditions.

Technical Parameters

Rated secondary current: 5A or 1A.

Rated insulation level: 12/42/75kV.

Structure and Features

Transformers with a rated primary current of 5～300A have a multiple-turn through-type semi-enclosed cast insulation structure. The laminated core is exposed, and the cast body is mounted on a panel with a nameplate, grounding bolt, and four mounting holes.

Transformers with a rated primary current of 400～1000A have a single-turn through-type fully enclosed cast insulation structure. The secondary coil is evenly wound on a ring core, and the cast body is mounted on a panel with a nameplate, grounding bolt, and four mounting holes. The LA-10Q current transformer is compact and easy to install.

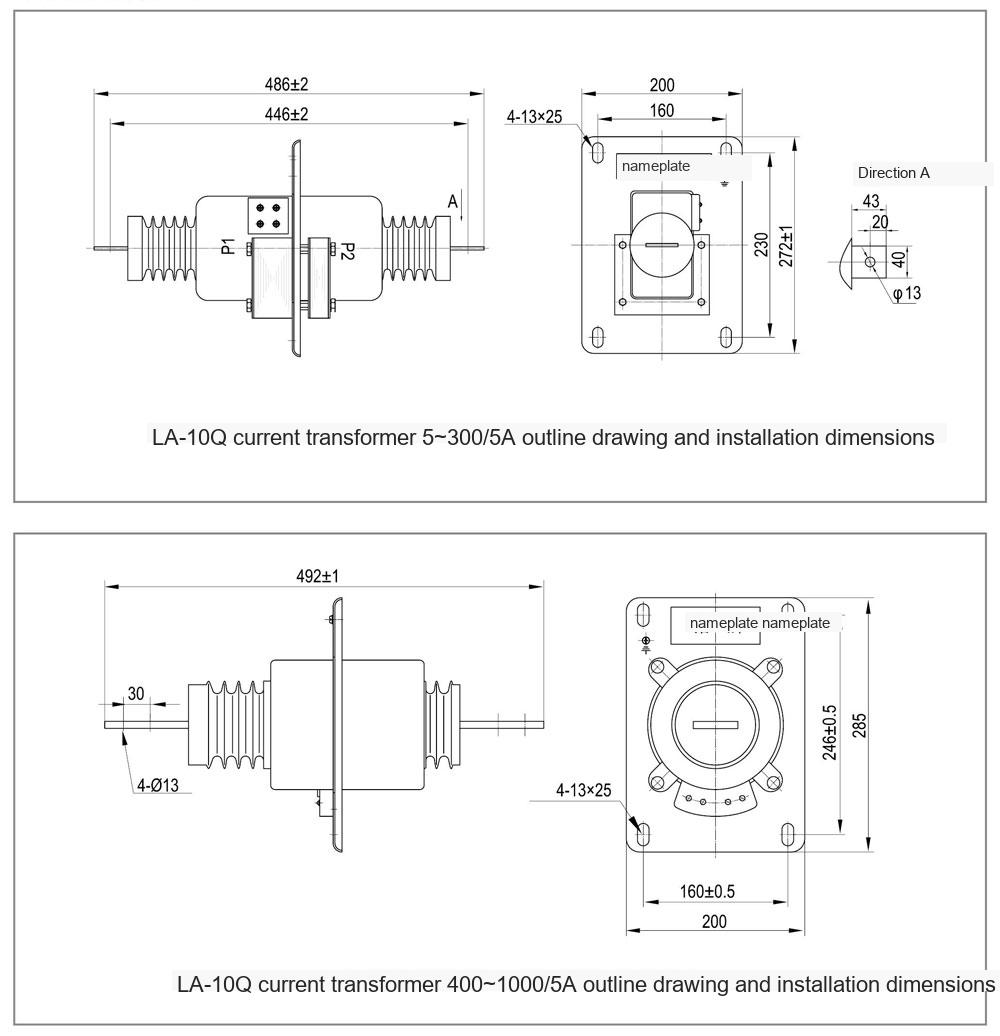

Outline Drawing and Installation Dimensions

Ordering Information

Please provide the following parameters when ordering:

• Product model
• Rated current ratio (A)
• Accuracy class combination and rated output (VA)
• Altitude (m)

Note: If users have special requirements, they can be determined through negotiation with our company.
