10kV Voltage Transformer JDZX10-3, 6, 10kV | Indoor Epoxy Resin Cast Voltage Transformer

Overview

The JDZX10-3, 6, 10 voltage transformers are representative products of the JDZX10 series. They are suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 3～10kV, for electric energy metering, voltage monitoring, and relay protection. The product complies with GB1207 "Voltage Transformers".

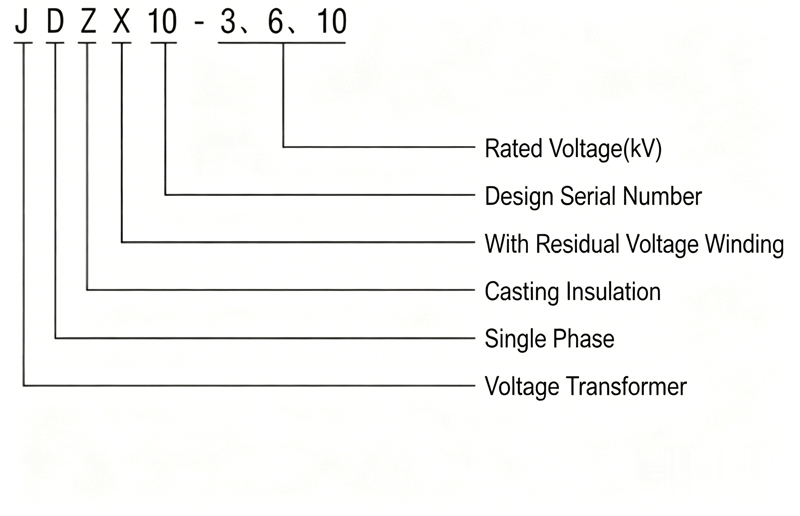

Model and Meaning

Normal Operating Conditions

Installation site: Indoor.

Ambient temperature: Maximum 40C; Minimum -5C; Daily average not exceeding 30C.

Atmospheric conditions: No heavy pollution in the atmosphere.

Technical Parameters

Structure and Features

This series of voltage transformers has a post-type structure, using epoxy resin fully enclosed casting, resistant to pollution and moisture. It is also suitable for use in tropical regions. The transformer does not require special maintenance, only periodic cleaning of surface contaminants. JDZX10-3, 6, 10 voltage transformers are equipped with a terminal box at the secondary terminal outlet. The terminal box has holes on the front and side for connection, ensuring safety and reliability. The product base is equipped with a grounding bolt and six mounting holes.

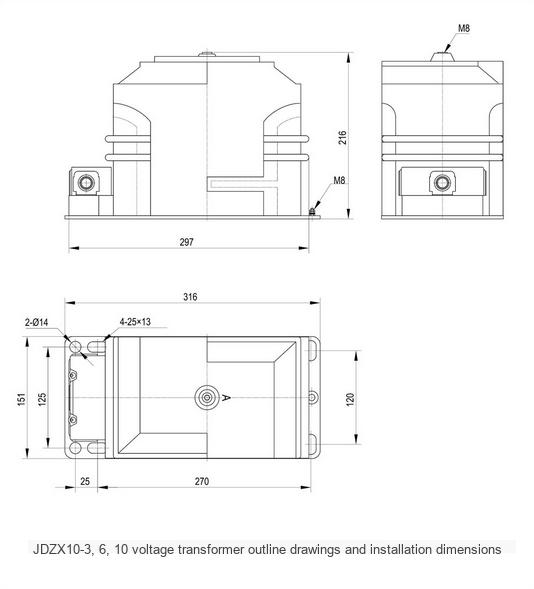

Outline Drawing and Installation Dimensions

Ensure that the JDZX10-3, 6, 10 voltage transformers have a rated voltage ratio of 10/√3/0.1/√3kV and an accuracy class of 0.5/3P. During installation, the distance from the primary high-voltage terminal to ground should be ≥125mm. The secondary load should not exceed the rated capacity, and the junction box moisture-proof sealing gasket should be intact.
