High Voltage Instrument Transformer
Product Title
Product Details
Product Overview
The JLSZV-10 three-phase three-wire dry-type metering box (outdoor resin cast type) is an improvement based on similar products. It is suitable for electric energy metering in outdoor power systems with a rated frequency of 50Hz and rated voltages of 10kV and 6kV. It is an ideal replacement for older oil-immersed products. The JLSZV-10 three-phase three-wire dry-type metering box uses epoxy resin cast insulation and can simultaneously sample voltage and current. It is the preferred solution for gateway metering and load control terminals in 10kV distribution networks.
This series of products consists of two parts: a combined voltage and current instrument transformer and a metering instrument box. The instrument transformer contains two independent voltage transformers and two independent current transformers, installed in phase A and phase C respectively. The outer wall of the combined instrument transformer is equipped with active and reactive watt-hour meters, as well as a test terminal block for testing. During operation, the metering box covers the meters to prevent tampering.
The core of the JLSZV-10 product is cast with epoxy resin, and the housing uses a steel drum to avoid damage to the epoxy cast body from direct sunlight and UV rays.

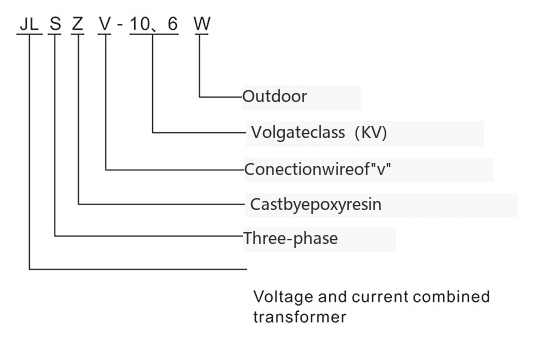

Model Meaning
Technical Parameters
Product complies with standard: GB17201-1997
Accuracy Class: 0.2S, 0.5S, 0.5
Rated Short-time Thermal Current Multiple: 80lln-1s
Rated Dynamic Stability Current Multiple: 200lln
Rated Voltage Ratio: 10000/100
Rated Primary Current: 5-400A
Rated Secondary Current: 5A or 1A
Rated Capacity: Voltage part Class 0.2, 2×15VA; Current part Class 0.2S, 0.2, 2×10VA
Voltage Part Technical Parameters
Model Rated Voltage Ratio Accuracy Class and Rated Secondary Output Limit Output(VA) Rated Insulation Level(kV) JLSZV-6W 6000/100 0.2-2×20Current Part Technical Parameters
| Rated Primary Current (A) | Single Ratio | Accuracy Class and Rated Secondary Output | 1s Thermal Stability Current (kA) | Rated Dynamic Stability Current (kA) | ||
|---|---|---|---|---|---|---|
| 0.2S | 0.5S | 0.5 | ||||
| 7.5-10-15 | 7.5 | 10 | 10 | 15 | 1.0 | 2.5 |
| 10-15-20 | 10 | 1.5 | 3.75 | |||
| 15-20-30 | 15 | 2.4 | 6.0 | |||
| 20-30-40 | 20, 25 | 3.0 | 7.5 | |||
| 30-40-50 | 30 | 4.5 | 11 | |||
| 40-50-76 | 40 | 8 | 20 | |||
| 50-75-100 | 50 | 9 | 22.5 | |||
| 75-100-150 | 75 | 12 | 30 | |||
| 100-150-200 | 100 | 16 | 40 | |||
| 150-200-300 | 150 | 24 | 60 | |||
| 200-300-400 | 200, 250 | 32 | 80 | |||
| 300-400-500 | 300 | 45 | 80 | |||
| 400-500-600 | 400 | 60 | 100 | |||
| 500-600-800 | 500-100 | 80 | 100 | |||
| 600-800-1000 | 500-100 | 80 | 100 | |||

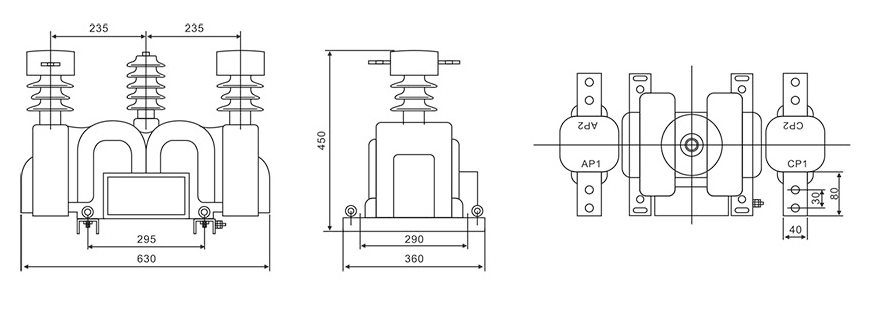

External and Installation Dimensions
Ensure that the JLSZV-10 three-phase three-wire dry-type metering box is installed with the phase sequence A-C corresponding correctly. The secondary cable shielding layer should be grounded at a single point reliably to prevent interference. Combined error verification should be performed at least once a year, and the junction box and meter box lock should be intact to prevent tampering.
JLSZV-10 Three-phase Three-wire Dry-type Metering Box | Outdoor Combined Voltage and Current Instrument Transformer
