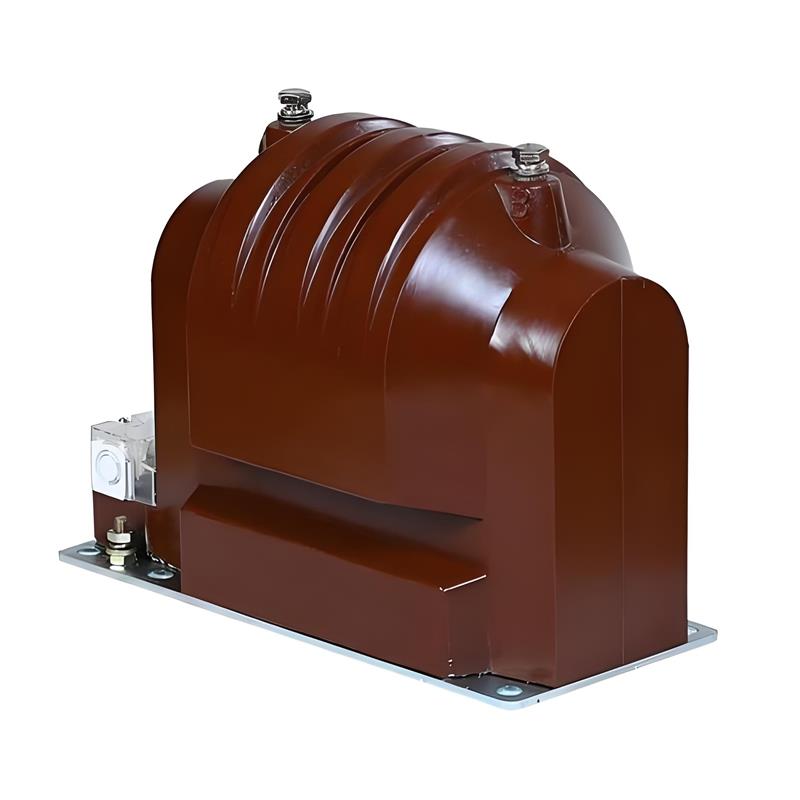

JDZ9-3, 6, 10KV High-voltage Voltage Transformer | Indoor Epoxy Resin Cast Voltage Transformer

Overview

The JDZ9-3, 6, 10KV high-voltage voltage transformer is a representative product of the JDZ9 series. It is suitable for AC power systems with a rated frequency of 50Hz or 60Hz and a rated voltage of 3～10kV, for electric energy metering, voltage monitoring, and relay protection. The product complies with GB1207 "Voltage Transformers".

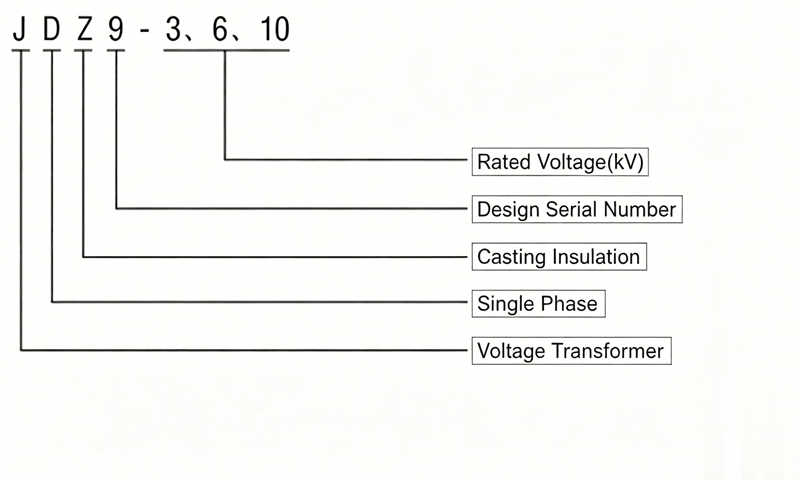

Model and Meaning

Normal Operating Conditions

Installation site: Indoor.

Ambient temperature: Maximum 40C; Minimum -5C; Daily average not exceeding 30C.

Atmospheric conditions: No heavy pollution in the atmosphere.

Technical Parameters

Structure and Features

This series of voltage transformers has a post-type structure, using epoxy resin fully enclosed casting, resistant to pollution and moisture. It is also suitable for use in tropical regions. The transformer does not require special maintenance, only periodic cleaning of surface contaminants. JDZ9-3, 6, 10 voltage transformers are equipped with a terminal box at the secondary terminal outlet. The terminal box has holes on the front and side for connection, ensuring safety and reliability. The product base is equipped with a grounding bolt and four mounting holes.

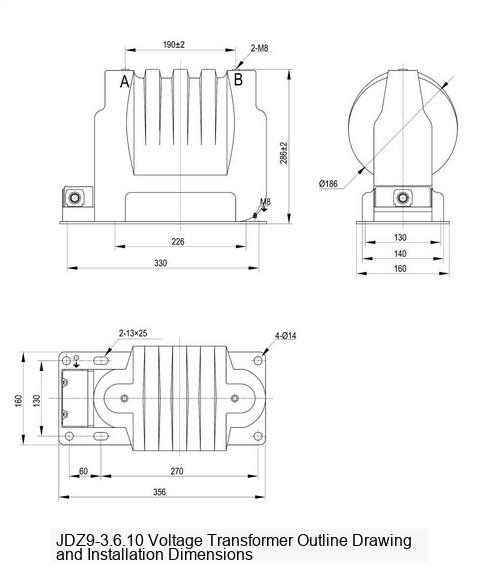

Outline Drawing and Installation Dimensions

Ensure that the JDZ9-3, 6, 10KV high-voltage voltage transformer is suitable for 3～10kV ungrounded systems, with the rated voltage ratio customized according to the order. During installation, verify the nameplate parameters. The secondary side must never be short-circuited. If the secondary voltage deviation exceeds ±0.5% during operation, the accuracy should be verified after power-off.
