The WLS-35KV cold-shrinkable cable accessories series products are suitable for 21/35, 26/35kV three-core polyethylene and XLPE power cables. This series of 35kV cold-shrinkable cable accessories is manufactured from imported liquid silicone rubber, which not only has excellent electrical properties but also has excellent physical properties such as hydrophobicity, high elasticity, long service life, and constant shrinkage pressure. Using cold-shrinkable cable accessories requires no open flame or special tools. Simply remove the plastic support core and it will automatically shrink and reset, making installation very convenient. They have good electrical and mechanical properties and can be used long-term under various harsh environmental conditions. With advantages such as light weight and easy installation, they are widely used in electric power, petroleum, chemical, metallurgy, railway, port, construction and other fields.

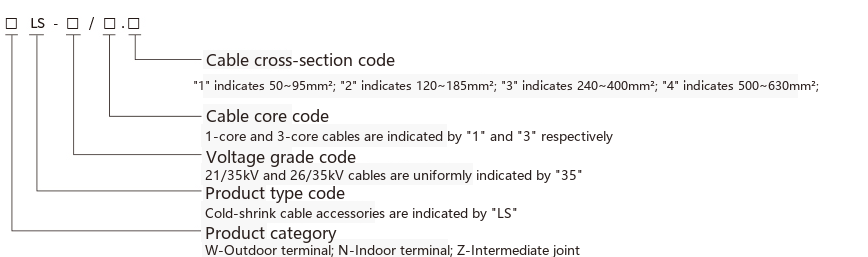

1. "WLS-35/3.1" indicates a cold-shrinkable three-core outdoor termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 50-95mm2.
2. "WLS-35/3.2" indicates a cold-shrinkable three-core outdoor termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 120-185mm2.
3. "WLS-35/3.3" indicates a cold-shrinkable three-core outdoor termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 240-400mm2.
4. "WLS-35/3.4" indicates a cold-shrinkable three-core outdoor termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 500-630mm2.
Technical Parameters
| Product Name | Voltage Level | Product Specification | Product Model | Suitable Cable Cross-section | Suitable Cable Main Insulation Outer Diameter (mm) | Weight per Set (kg) |
|---|---|---|---|---|---|---|
| Three-core Outdoor Termination | 26/35kV | 3.1# | WLS35-3×1 | 50~95 | 86~94 | 8.46 |
| 26/35kV | 3.2# | WLS35-3×2 | 120~185 | 98~105 | 8.48 | |
| 26/35kV | 3.3# | WLS35-3×3 | 240~400 | 111~124 | 8.59 | |
| 26/35kV | 3.4# | WLS35-3×4 | 500~630 | - | 9.05 | |
| 26/35kV | 3.5# | WLS35-3×5 | 700 | - | 9.20 | |
| 26/35kV | 3.6# | WLS35-3×6 | 800 | - | 9.30 |
WLS-35KV Outdoor Three-core Cold-shrinkable Cable Accessories | 35kV Outdoor Cold-shrinkable Silicone Rubber Cable Termination
