Product Details
The NLS-35KV cold-shrinkable termination series cold-shrinkable three-core indoor cable termination is suitable for indoor termination connection and insulation protection of 35kV three-core power cables. As an indoor three-core cold-shrinkable cable accessory, it is manufactured using cold-shrinkable silicone rubber technology, featuring excellent electrical insulation performance and sealing performance. Installation requires no open flame or special tools, making construction simple and fast.
NLS-35kV cold-shrinkable three-core indoor cable terminations are available in various specifications according to cable cross-section, covering different cross-section requirements from 50-630mm2

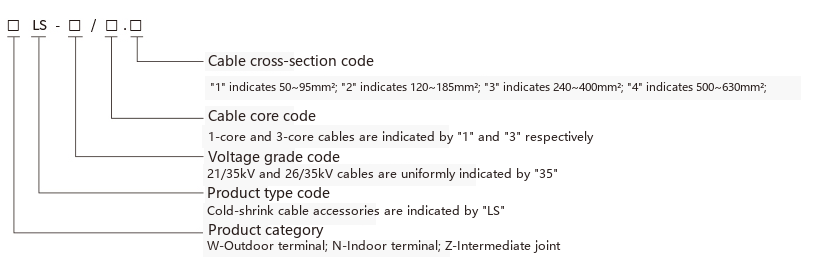

NLS-35/3.1" indicates a cold-shrinkable three-core outdoor termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 50-95mm2.
NLS-35/3.3" indicates a cold-shrinkable three-core termination with a rated voltage of 35kV suitable for three-core cables with a cross-section of 240-400mm2.
Technical Parameters
| Product Name | Voltage Level | Product Specification | Product Model | Suitable Cable Cross-section | Suitable Cable Main Insulation Outer Diameter (mm) | Weight per Set (kg) |
|---|---|---|---|---|---|---|
| Three-core Outdoor Termination | 26/35kV | 3.1# | NLS35-3×1 | 50~95 | 86~94 | 8.46 |
| 26/35kV | 3.2# | NLS35-3×2 | 120~185 | 98~105 | 8.48 | |
| 26/35kV | 3.3# | NLS35-3×3 | 240~400 | 111~124 | 8.59 | |
| 26/35kV | 3.4# | NLS35-3×4 | 500~630 | - | 9.05 | |
| 26/35kV | 3.5# | NLS35-3×5 | 700 | - | 9.20 | |
| 26/35kV | 3.6# | NLS35-3×6 | 800 | - | 9.30 |
NLS-35kv Cold-shrinkable Three-core Indoor Cable Termination | 35kV Indoor Cold-shrinkable Three-core Cable Termination
