High Voltage Cable Accessories
Product Title
Product Details
The WLS-35KV cold-shrinkable cable accessories series outdoor single-core cold-shrinkable cable accessory products are suitable for outdoor termination connection and insulation protection of 35kV single-core polyethylene and XLPE power cables. Manufactured from imported liquid silicone rubber, they have excellent electrical properties, hydrophobicity, and high elasticity. Installation requires no open flame or special tools and is widely used in power transmission and distribution systems.

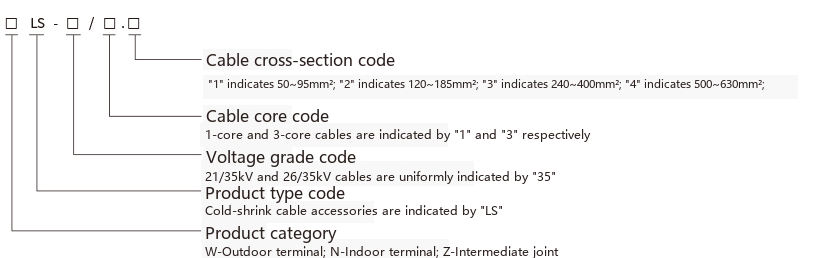

WLS series 35kV cold-shrinkable cable accessories single-core products are differentiated by cable cross-section specifications, suitable for 35kV single-core power cables of various cross-sections.
Technical Parameters
| Product Name | Voltage Level | Product Specification | Product Model | Suitable Cable Cross-section | Suitable Cable Main Insulation Outer Diameter (mm) | Weight per Set (kg) |
|---|---|---|---|---|---|---|
| Single-core Indoor Termination | 26/35kV | 1.1# | NLS35-1×1 | 50~95 | 38.6~42.2 | 3.15 |
| 26/35kV | 1.2# | NLS35-1×2 | 120~185 | 43.8~47.2 | 3.24 | |
| 26/35kV | 1.3# | NLS35-1×3 | 240~400 | 49.6~55.2 | 3.28 | |
| 26/35kV | 1.4# | NLS35-1×4 | 500~630 | 58.4~62.2 | 3.29 | |
| 26/35kV | 1.5# | NLS35-1×5 | 700 | 65 | 3.31 | |
| 26/35kV | 1.6# | NLS35-1×6 | 800 | 70 | 3.36 |
WLS-35KV Outdoor Single-core Cold-shrinkable Cable Accessories | 35kV Outdoor Cold-shrinkable Single-core Cable Termination
