Position: Home >> Product Center >> Other High Voltage Accessories >> High Voltage Cable Accessories   >>   8.7/15kV/10KV Three-core Cold-shrinkable Intermediate Joint ZLS-15/3.3

Product Title

8.7/15kV/10KV Three-core Cold-shrinkable Intermediate Joint ZLS-15/3.3

The ZLS-15/3.3 three-core cold-shrinkable intermediate joint is suitable for intermediate connection of 8.7/15kV three-core power cables. The cold-shrinkable silicone rubber structure provides uniform electric field distribution and excellent sealing performance with convenient installation.
8.7/15kV/10KV Three-core Cold-shrinkable Intermediate Joint ZLS-15/3.3

Product Details

Product Details

8.7/15kV/10KV Three-core Cold-shrinkable Intermediate Joint ZLS-15/3.3

8.7/15kV/10KV Three-core Cold-shrinkable Intermediate Joint ZLS-15/3.3

'
Product Overview

Three-core cold-shrinkable intermediate joint series products are suitable for 3.6/6, 6/10, 8.7/10, 8.7/15kV three-core polyethylene and XLPE power cables. Made of liquid silicone rubber, integrating waterproofing, stress control, shielding, and insulation. They have good electrical and mechanical properties and can be used long-term under various harsh environmental conditions. With advantages such as light weight and easy installation, they are widely used in electric power, petroleum, chemical, metallurgy, railway, port, construction and other fields.

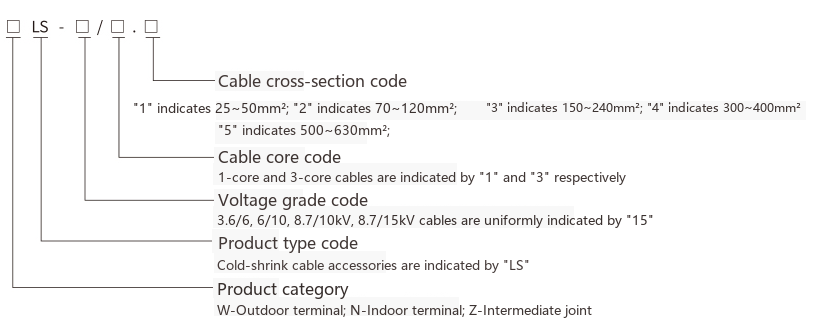

Model Description


2. "ZLS-15/3.3" indicates a three-core cold-shrinkable intermediate joint with a rated voltage of 15kV suitable for three-core cables with a cross-section of 150-240mm2.
Technical Parameters


8.7/15kV Three-core Cold-shrinkable Intermediate Joint | 10kV Cold-shrinkable Three-core Cable Intermediate Connection
