High Voltage Cable Accessories
Product Title
Product Details
The NLS-35KV cold-shrinkable accessories series indoor single-core cold-shrinkable cable accessories are suitable for indoor termination connection and insulation protection of 35kV single-core power cables. These cold-shrinkable cable accessories are manufactured from imported liquid silicone rubber, offering excellent electrical performance and sealing/waterproof performance with convenient and reliable installation.

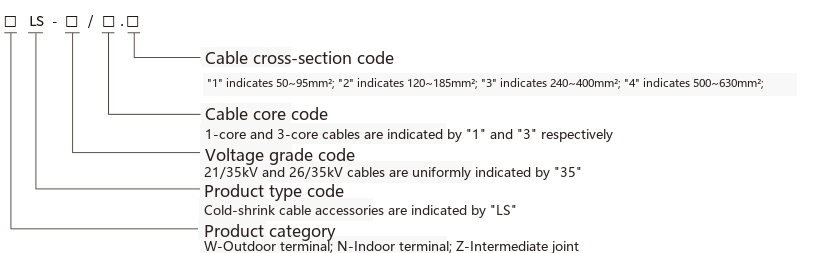

NLS-35KV cold-shrinkable accessories indoor single-core cold-shrinkable cable accessories are available in various specifications according to cable cross-section.
Technical Parameters
| Product Name | Voltage Level | Product Specification | Product Model | Suitable Cable Cross-section | Suitable Cable Main Insulation Outer Diameter (mm) | Weight per Set (kg) |
|---|---|---|---|---|---|---|
| Three-core Outdoor Termination | 26/35kV | 3.1# | NLS35-1×1 | 50~95 | 86~94 | 8.46 |
| 26/35kV | 3.2# | NLS35-1×2 | 120~185 | 98~105 | 8.48 | |
| 26/35kV | 3.3# | NLS35-1×3 | 240~400 | 111~124 | 8.59 | |
| 26/35kV | 3.4# | NLS35-1×4 | 500~630 | - | 9.05 | |
| 26/35kV | 3.5# | NLS35-1×5 | 700 | - | 9.20 | |
| 26/35kV | 3.6# | NLS35-1×6 | 800 | - | 9.30 |
NLS-35KV Indoor Single-core Cold-shrinkable Cable Accessories | 35kV Indoor Cold-shrinkable Single-core Cable Termination
