Position: Home >> Product Center >> Other High Voltage Accessories >> High Voltage Cable Accessories >> 35kV Three-core Cold-shrinkable Intermediate Joint

Product Title

35kV Three-core Cold-shrinkable Intermediate Joint

The 35kV three-core cold-shrinkable intermediate joint is suitable for intermediate connection of 35kV three-core power cables. Adopting integrally molded cold-shrinkable silicone rubber technology, installation requires no heating and provides stable and reliable electrical performance, widely used in high-voltage distribution lines.

Product Details

35kV Three-core Cold-shrinkable Intermediate Joint

Product Overview

35kV three-core cold-shrinkable cable accessories series products are suitable for 21/35, 26/35kV three-core polyethylene and XLPE power cables. The cold-shrinkable cable accessories are manufactured from imported liquid silicone rubber, which not only has excellent electrical properties but also has excellent physical properties such as hydrophobicity, high elasticity, long service life, and constant shrinkage pressure. Using cold-shrinkable cable accessories requires no open flame or special tools. Simply remove the plastic support core and it will automatically shrink and reset, making installation very convenient. They have good electrical and mechanical properties and can be used long-term under various harsh environmental conditions. With advantages such as light weight and easy installation, they are widely used in electric power, petroleum, chemical, metallurgy, railway, port, construction and other fields.

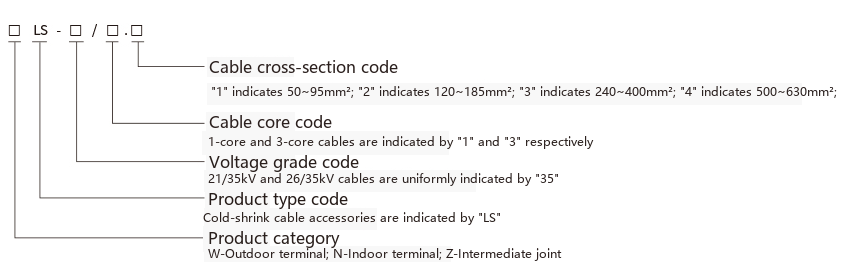

Model Description

ZLS-35/3.3" indicates a cold-shrinkable three-core intermediate joint with a rated voltage of 35kV suitable for three-core cables with a cross-section of 240-400mm².

Technical Parameters

35kV Three-core Cold-shrinkable Intermediate Joint | 35kV Cold-shrinkable Three-core Cable Intermediate Connection
