PRWG2-35kV/200A Drop-out Fuse Outdoor High-Voltage Protection Device

Product Overview

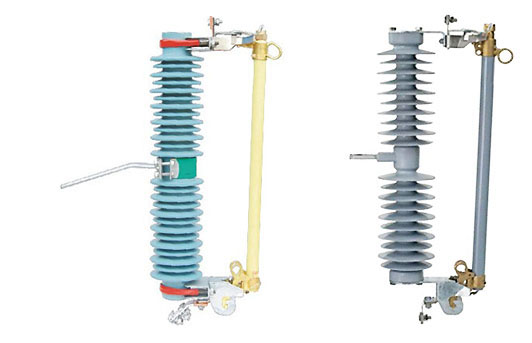

The PRWG2-35 drop-out fuse (expulsion fuse) is an outdoor high-voltage protection device in power transmission and distribution systems. It is installed on the high-voltage side of distribution transformers or on branch trunk lines of distribution lines, serving as short-circuit and overload protection for transformers and lines, as well as for making and breaking load currents. This PRWG2-35kV/200A drop-out fuse consists of a ceramic/composite insulating support and a fuse tube. The fixed contacts are installed at both ends of the insulating support, and the moving contacts are installed at both ends of the fuse tube. The fuse tube is composed of an inner arc-extinguishing tube and an outer phenolic paper tube or epoxy fiberglass tube. The load-break drop-out fuse is enhanced with resilient auxiliary contacts and an arc chute for making and breaking load currents.

The RW series drop-out fuses produced and sold by FAURE/Gaosuo Electric are held in the closed position by the tension of the fuse element during normal operation. When a fault occurs in the system, the fault current causes the fuse element to melt rapidly, creating an arc. The arc-extinguishing tube, subjected to the heat of the arc, decomposes a large amount of gas, creating high pressure inside the tube, which is blown longitudinally, rapidly elongating and extinguishing the arc. After the fuse element melts, the lower moving contact loses tension and flips downward, and the locking mechanism releases the fuse tube, which then drops, forming a clear disconnection position. When it is necessary to break the load, an insulating pole is used to pull the moving contact. At this point, the main moving and fixed contacts are still in contact. As the insulating pole continues to pull the contact, the auxiliary contacts also separate, creating an arc between them. The arc is elongated in the narrow slot of the arc chute, and the arc chute generates gas, extinguishing the arc at current zero.

Product Features:

• After installing a high-voltage fuse element in the PRWG2-35kV/200A drop-out fuse, it protects the circuit and interrupts fault currents;
• Uses high-voltage ceramic/composite material insulator, providing excellent insulation performance;
• After the fuse element melts, the fuse tube drops automatically, forming a clear isolation distance, which is very safe.

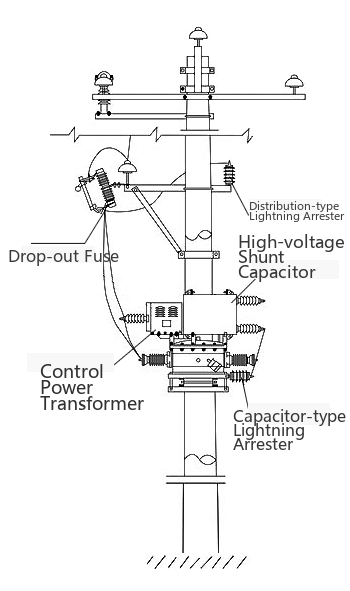

Installation Position Diagram

Main Technical Parameters
