TBP-B-12.7/131J 10kV Overvoltage Protector Cabinet Three-phase Combination Arrester

Product Overview

FAURE Gaosuo Electric Co., Ltd. produces TBP series 10kV and below cabinet three-phase combination overvoltage protectors (three-phase combination arresters), which are new protective devices used to protect the insulation of power equipment from overvoltage damage. It adopts a four-star connection method, setting a common neutral point, which can effectively limit phase-to-earth overvoltages while also efficiently limiting inter-phase overvoltages, something ordinary arresters cannot achieve. This product is widely used for protecting vacuum switches, rotating motors, shunt compensation capacitors, power plants, substations and other locations. Practice has proven that TBP-B-12.7/131J 10kV overvoltage protector is an effective measure for limiting inter-phase overvoltages, one combination protector can serve the function of six ordinary arresters, and is well received by the power system.

With the increasingly widespread use of vacuum switches, various overvoltages caused by their operation have raised new challenges for power equipment protection. TBP series 10kV overvoltage protectors use large-capacity zinc oxide resistor discs as the core component internally, with good volt-ampere characteristics and strong overvoltage absorption capability, providing reliable protection for protected equipment. The product has composite insulation, compact structure, fully enclosed integral vulcanization molding, and uses high-quality metal oxide valve plates and self-blowing special gaps, with high operating characteristics, safety and convenience. It is particularly suitable for use with different models of medium voltage complete switchgear such as KYN, XGN, GBC, JYN, GZS, or can be directly installed in small compact substations.

Applicable Standards

TBP series 10kV and below cabinet three-phase combination arrester products comply with national standards GB11032-2000 "AC Gapless Metal Oxide Arresters", JB/T10496-2005 "AC Three-phase Combination Gapless Metal Oxide Arresters", ZBK49005-90 "Gapped Metal Oxide Arresters for AC Systems", JB/T8459-2006 "Arrester Product Model Designation Method".

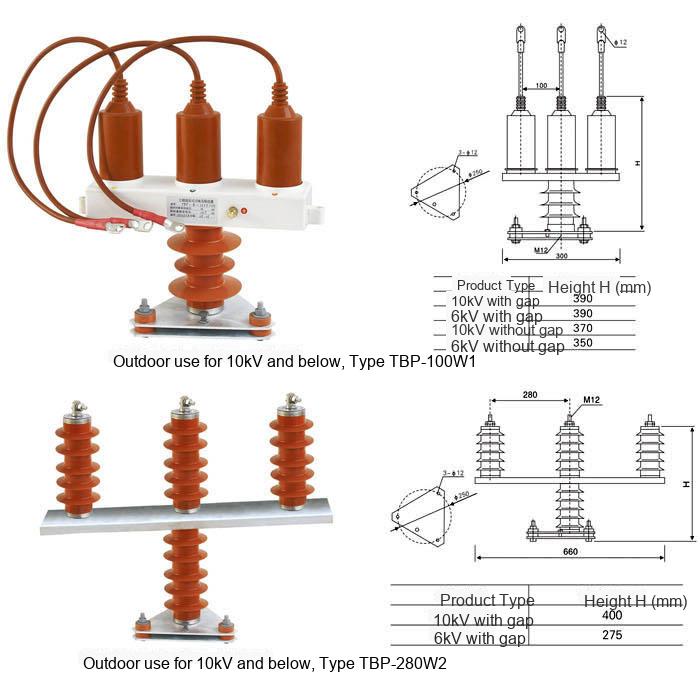

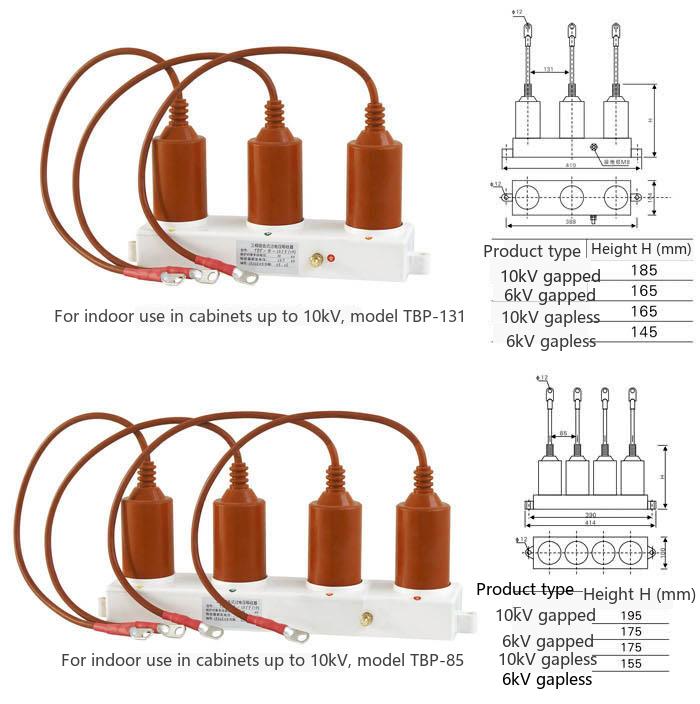

Product Images

Technical Parameters

Product Features and Advantages

Efficient Overvoltage Limitation: TBP-B-12.7/131J 10kV overvoltage protector adopts a unique three-phase combination design, can limit both inter-phase and phase-to-earth overvoltages simultaneously, with significant suppression effect on vacuum switch operating overvoltages.

Compact and Reliable Structure: Uses composite insulation material, fully enclosed integral vulcanization molding, compact structure, especially suitable for installation in space-limited switchgear such as KYN, XGN and other cabinet types.

Superior Protection Performance: Uses large-capacity zinc oxide resistor discs as the internal core, with flat volt-ampere characteristics, large current carrying capacity, low residual voltage, providing reliable protection for rotating motors, capacitor banks and other equipment.

Simple Installation and Maintenance: The product is an integral structure with simple wiring, can be directly installed in switchgear or compact substations, requires no special maintenance, safe and convenient.
