Composite Zinc Oxide Arrester_Model_Parameter_Selection

Product Overview

Product Name: Composite Zinc Oxide Arrester

Voltage Range: 3kV~220kV, 0.22kV~0.66kV (low voltage)

Product Models: YH5WS (Distribution Type), YH5WZ (Station Type), YH5WR (Capacitor Type), YH5CS (Series Gap), YH1.5W (Neutral Point Type), YH5WX (Line Type)

Manufacturing Process: World-class integrated one-time molding process

Product Material: Silicone rubber (composite) material, zinc oxide varistor

Applicable Standards: GB11032-2000 "AC Gapless Metal Oxide Arresters", JB/T9672-2005 "Metal Oxide Arresters with Series Gaps" standards;

Manufacturer: Shanghai Gaosuo Electric Co., Ltd.

Product Brand: Gaosuo Electric

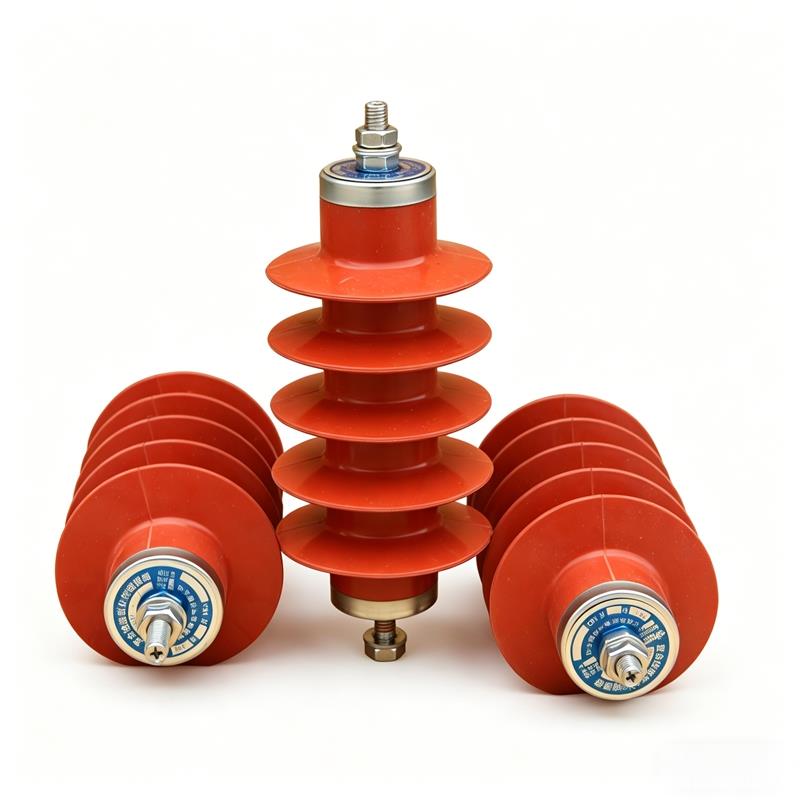

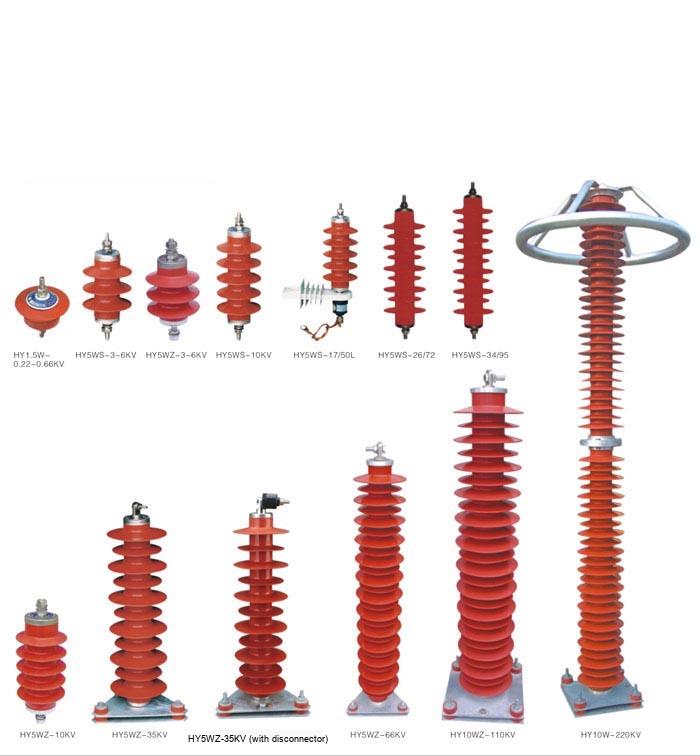

Composite Zinc Oxide Arrester Model Selection

Advantages of zinc oxide arrester products produced and sold by Gaosuo Electric

Excellent hydrophobicity and transferability.
Excellent corrosion resistance, aging resistance, electrical insulation and other properties.
High pollution flashover voltage and fragmentation resistance, uniform voltage distribution.
Fully equipped with seven excellent characteristics: current carrying capacity, protection characteristics, sealing performance, mechanical performance, strong pollution resistance, high operational reliability, high power frequency withstand capability, making it the best lightning protection device in the high-tech era.

In the material of zinc oxide arresters, "high polymer silicone rubber" is used. Compared with porcelain arresters under the same conditions, the flashover voltage is more than 2 times that of porcelain. Therefore, integrated composite zinc oxide arresters have become mainstream products and are widely used in international power systems. They are vulcanized from silicone rubber with flame retardants, anti-aging agents and coupling agents under high temperature and high pressure. Product types are divided into YH5WS (distribution type arrester), YH5WZ (station type arrester), YH5WR (capacitor type), YH5CS (series gap), YH1.5W (neutral point type), YH5WX (line type arrester), produced using one-time molding technology, which is the current world-leading arrester manufacturing production technology.

The zinc oxide arrester uses high-quality zinc oxide varistors internally. Utilizing the excellent nonlinear volt-ampere characteristics of zinc oxide, under normal operating voltage, the current through the arrester is only a few microamperes or milliamperes. When overvoltage acts, the resistance drops sharply, releasing overvoltage energy to achieve protection. The difference between zinc oxide arresters and traditional arresters is that they have no discharge gap, cleverly using the nonlinear characteristics of zinc oxide to achieve current discharge and interruption functions.

Main Technical Parameters

Voltage Level	Application	System Nominal Voltage (kV) RMS	Arrester Model	Arrester Rated Voltage (kV) RMS	Gapless Arrester			Gapped Arrester			Residual Voltage Peak (kV) (max.)			2000 μS Square Wave Current Capacity (A)	4/10 High Current Withstand Capability (kA)
Voltage Level	Application	System Nominal Voltage (kV) RMS	Arrester Model	Arrester Rated Voltage (kV) RMS	Arrester Continuous Operating Voltage (kV) RMS	DC 1mA Reference Voltage (kV) RMS	Maximum Leakage at 0.75 DC 1mA Voltage (μA)	Power Frequency Discharge Voltage (kV) RMS min.	1.2/50 Impulse Discharge Voltage (kV) Peak max.	Maximum Conductance Current (μA)	8/20 Lightning Impulse Current	30/60 Switching Impulse Current	1/4 Steep Wave Impulse Current	2000 μS Square Wave Current Capacity (A)	4/10 High Current Withstand Capability (kA)
Low Voltage	Distribution Type	0.22	YH1.5W-0.28/1.3	0.28	0.24	0.6	50	-	-	-	1.3	-	-	75	25
	Distribution Type	0.38	YH1.5W-0.5/2.6	0.5	0.42	1.2	50	-	-	-	2.6	-	-	75	25
	Station Type	0.66*	YH2.5WD-1.3/3.6	1.3	0.95	1.8	50	-	-	-	3.6	-	-	200	40
	Station Type	1.14*	YH2.5WD-2.6/7.2	2.6	1.9	3.6	50	-	-	-	7.2	-	-	200
3kV	Distribution Type	3	YH5WS-3.8/15	3.8	2	7.5	50	-	-	-	15	12.8	17.3	75
		3	YH5WS-5/15	5	4	7.5	50	-	-	-	15	12.8	17.3
		3	YH5CS-3.8/13.5	3.8	-	-	-	9	13.5	20	13.5	11.4	15
	Station Type	3	YH5WZ-3.8/13.5	3.8	2	7.2	50	-	-	-	13.5	11.5	15.5	200	65
		3	YH5WZ-5/13.5	5	4	7.2	50	-	-	-	13.5	11.5	15.5
		3	YH5CZ-3.8/12.0	3.8	-	-	-	8	12	20	12	10.2	13.5
	Capacitor Type	3	YH5WR-3.8/13.5	3.8	2	7.2	50	-	-	-	13.5	10.5	-	400
		3	YH5WR-5/13.5	5	4	7.2	50	-	-	-	13.5	10.5	-
		3	YH5CR-3.8/12.0	3.8	-	-	-	8	12	20	12	9.6	-
	Generator Type	3.15*	YH5WD-3.8/9.5	3.8	2	5.7	50	-	-	-	9.5	7.6	10.7
		3.15*	YH5WD-4/9.5	4	3.15	5.7	50	-	-	-	9.5	7.6	10.7
		3.15*	YH5CD-3.8/8.6	3.8	-	-	-	7.5	8.6	20	8.6	6.9	9.8
	Motor Type	3.15*	YH2.5WD-3.8/9.5	3.8	2	5.7	50	-	-	-	9.5	7.6	10.7	200
		3.15*	YH2.5WD-4/9.5	4	3.15	5.7	50	-	-	-	9.5	7.6	10.7
		3.15*	YH2.5CD-3.8/8.6	3.8	-	-	-	7.5	8.6	20	8.6	6.9	9.8
	Neutral Point Type	3.15*	YH1.5W-2.4/6	2.4	1.9	3.4	50	-	-	-	6	5	-	400
6kV	Distribution Type	6	YH5WS-7.6/30	7.6	4	15	50	-	-	-	30	25.6	34.6	75	40
		6	YH5WS-10/30	10	8	15	50	-	-	-	30	25.6	34.6
		6	YH5CS-7.6/27	7.6	-	-	-	16	27	20	27	22.5	30
	Station Type	6	YH5WZ-7.6/27	7.6	4	14.4	50	-	-	-	27	23	31	200	65
		6	YH5WZ-10/27	10	8	14.4	50	-	-	-	27	23	31
		6	YH5CZ-7.6/24	7.6	-	-	-	16	24	20	24	20.4	27
	Capacitor Type	6	YH5WR-7.6/27	7.6	4	14.4	50	-	-	-	27	21	-	400
		6	YH5WR-10/27	10	8	14.4	50	-	-	-	27	21
		6	YH5CR-7.6/24	7.6	-	-	-	16	24	20	24	19.5
	Generator Type	6.3*	YH5WD-7.6/18.7	7.6	4	11.2	50	-	-	-	18.7	15	21
		6.3*	YH5WD-8/18.7	8	6.3	11.2	50	-	-	-	18.7	15	21
		6.3*	YH5CD-7.6/17	7.6	-	-	-	15	17	20	17	13.8	19.6
	Motor Type	6.3*	YH2.5WD-7.6/18.7	7.6	4	11.2	50	-	-	-	18.7	15	21	200
		6.3*	YH2.5WD-8/18.7	8	6.3	11.2	50	-	-	-	18.7	15	21
		6.3*	YH2.5CD-7.6/17	7.6	-	-	-	15	17	20	17	13.8	19.6
	Neutral Point Type	6.3*	YH1.5W-4.8/12	4.8	3.8	6.8	50	-	-	-	12	10	-	400
10kV	Distribution Type	10	YH5WS-12.7/50	12.7	6.6	25	50	-	-	-	50	42.5	57.5	75	40
		10	YH5WS-17/50	17	13.6	25	50	-	-	-	50	42.5	57.5
		10	YH5CS-12.7/45	12.7	-	-	-	26	45	20	45	38.4	51
	Station Type	10	YH5WZ-12.7/45	12.7	6.6	24	50	-	-	-	45	38.3	51.8	200	65
		10	YH5WZ-17/45	17	13.6	24	50	-	-	-	45	38.3	51.8
		10	YH5CZ-12.7/41	12.7	-	-	-	26	41	20	41	35	46
	Capacitor Type	10	YH5WR-12.7/46	12.7	6.6	24	50	-	-	-	46	35	-	400
		10	YH5WR-17/46	17	13.6	24	50	-	-	-	46	35
		10	YH5CR-12.7/41	12.7	-	-	-	26	41	20	41	33
	Generator Type	10.5*	YH5WD-12.7/31	12.7	6.6	18.6	50	-	-	-	31	25	34.7
		10.5*	YH5WD-13.5/31	13.5	10.5	18.6	50	-	-	-	31	25	34.7
		10.5*	YH5CD-12.7/28	12.7	-	-	-	25	28	20	28	22.5	32
		13.8*	YH5WD-17.5/40	17.5	13.8	24.4	50	-	-	-	40	32	44.8
		15.75*	YH5WD-20/45	20	15.75	28	50	-	-	-	45	36	50.4
		18.0*	YH5WD-23/51	23	18	31.9	50	-	-	-	51	40.8	57.2
		20.0*	YH5WD-25/56.2	25	20	35.4	50	-	-	-	56.2	45	62.9
	Motor Type	10.5*	YH2.5WD-12.7/31	12.7	6.6	18.6	50	-	-	-	31	25	34.7	200
		10.5*	YH2.5WD-13.5/31	13.5	10.5	18.6	50	-	-	-	31	25	34.7
		10.5*	YH2.5CD-12.7/28	12.7	-	-	-	25	28	20	28	22.5	32

Voltage Level	Application	System Nominal Voltage (kV) RMS	Arrester Model	Arrester Rated Voltage (kV) RMS	Gapless Arrester (W)			Gapped Arrester			Residual Voltage Peak (kV) (max.)			2000 μS Square Wave Current Capacity (A)	4/10 High Current Withstand Capability (kA)
Voltage Level	Application	System Nominal Voltage (kV) RMS	Arrester Model	Arrester Rated Voltage (kV) RMS	Arrester Continuous Operating Voltage (kV) RMS	DC 1mA Reference Voltage (kV) RMS	Maximum Leakage at 0.75 DC 1mA Voltage (μA)	Power Frequency Discharge Voltage (kV) RMS min.	1.2/50 Impulse Discharge Voltage (kV) Peak max.	Maximum Conductance Current (μA)	8/20 Lightning Impulse Current	30/60 Switching Impulse Current	1/4 Steep Wave Impulse Current	2000 μS Square Wave Current Capacity (A)	4/10 High Current Withstand Capability (kA)
10kV	Neutral Point Type	10.5*	YH1.5W-8/19	8	6.4	11.4	50	-	-	-	19	15.9	-	400	65
		13.8*	YH1.5W-10.5/23	10.5	8.4	14.9	50	-	-	-	23	19.2	-
		15.75*	YH1.5W-12/26	12	9.6	17	50	-	-	-	26	21.6	-
		18.0*	YH1.5W-13.7/29.2	13.7	11	19.5	50	-	-	-	29.2	24.3	-
		20.0*	YH1.5W-15.2/31.7	15.2	12.2	21.6	50	-	-	-	31.7	26.4	-	75	40
	Anti-pollution Type	10	YH5WS-12.7/50W	12.7	6.6	25	50	-	-	-	50	42.5	57.5
		10	YH5WS-17/50W	17	13.6	25	50	-	-	-	50	42.5	57.5
		10	YH5CS-12.7/45W	12.7	-	-	-	26	45	20	45	38.4	51	400	65
20kV	Anti-pollution Type	20	HY5WS-26/72	26	20.8	37	-	-	-	-	72	65	85
20kV	Anti-pollution Type	20	HY5WS-34/95	34	27.2	48	-	-	-	-	95	85	105
35kV	Station Type	35	YH5WZ-51/134	51	40.8	73	50	-	-	-	134	114	154
		35	YH5CZ-42/124	42	-	-	-	80	124	20	124	100	143
		35	YH5WZ-42/134	42	23.4	73	50	-	-	-	134	114	154
	Capacitor Type	35	YH5WR-51/134	51	40.8	73	50	-	-	-	134	105	-
		35	YH5CR-42/124	42	-	-	-	80	124	20	124	100	-
		35	YH5WR-42/134	42	23.4	73	50	-	-	-	134	105	-
	Fully Insulated Type	35	YH5WZ-51/134Q	51	40.8	73	50	-	-	-	134	114	154
		35	YH5WR-51/134Q	51	40.8	73	50	-	-	-	134	105	-
		35	YH5WZ-42/134Q	42	23.4	73	50	-	-	-	134	114	154
		35	YH5WR-42/134Q	42	23.4	73	50	-	-	-	134	105	-
	Counting Type	35	YH5WZ-51/134-J	51	40.8	73	50	-	-	-	134	114	154
		35	YH5CZ-42/124-J	42	-	-	-	80	124	20	124	100	143
		35	YH5WR-51/134-J	51	40.8	73	50	-	-	-	134	105	-
		35	YH5CR-42/124-J	42	-	-	-	80	124	20	124	100	-
		35	YH5WZ-42/134-J	42	23.4	73	50	-	-	-	134	114	154
		35	YH5WR-42/134-J	42	23.4	73	50	-	-	-	134	105	-
	Line Type	35	YH5WX-51/134	51	40.8	73	50	-	-	-	134	114	154
		35	YH5WX-54/150	54	43.2	77	50	-	-	-	150	128	169
		35	YH5CX-42/120	42	-	-	-	80	120	20	120	100	138	600
		35	YH5CX-42/150	42	-	-	-	80	150	20	150	128	169
	Neutral Point Type	35	YH1.5W-30/80	30	24	44	50	-	-		80	67.5	-
66kV	Station Type	66	YH5WZ-84/221	84	67.2	121	50	-	-	-	221	188	254		100
		66	YH5WZ-90/235	90	72.5	130	50	-	-	-	235	201	270		100
		66	YH10WZ-84/221	94	67.2	121	50	-	-	-	221	188	248		65
		66	YH10WZ-90/235	90	72.5	130	50	-	-	-	235	201	264
	Line Type	66	YH5WX-96/250	96	75	140	50	-	-	-	250	213	288
		66	YH5WX-96/275	96	75	154	50	-	-	-	275	234	316
		66	YH5CX-75/218	75	-	-	-	117*	218	20	218	-	246
110kV	Station Type	110	YH5WZ-100/260	100	78	145	50	-	-	-	260	221	299
		110	YH5WZ-102/266	102	79.6	148	50	-	-	-	266	226	305		100
		110	YH5WZ-108/281	108	84	157	50	-	-	-	281	239	323
		110	YH10WZ-100/260	100	78	145	50	-	-	-	260	221	291
		110	YH10WZ-102/266	1032	79.6	148	50	-	-	-	266	226	297		65
		110	YH10WZ-108/281	108	84	157	50	-	-	-	281	239	315		65
	Line Type	110	YH5WX-108/281	108	84	157	50	-	-	-	281	239	323		100
		110	YH5WX-108/309	108	84	173	50	-	-	-	309	263	348		100
		110	YH10WX-108/281	108	84	157	50	-	-	-	281	239	315		65
		110	YH10WX-108/309	108	84	173	50	-	-	-	309	263	348		100
		110	YH5CX-90/260	90	-	-	-	170*	260	20	260	-	292
		110	YH10CX-90/260	90	-	-	-	170*	20	20	260	-	292
		110	YH10CX-90/280	96	-	-	-	170*	280	20	280	-	314	400	65
		110	YH10CX-102/296	102	-	-	-	170*	296	20	296	-	332	400	65
	Neutral Point Type	110	YH1.5W-60/144	60	-48	85	50	-	-	-	144	135	-	800	100
	Neutral Point Type	110	YH1.5W-72/186	72	58	103	50	-	-	-	186	174	-
220kV	Station Type	220	YH10WZ-192/500	192	150	280	50	-	-	-	500	426	560
		220	YH10WZ-200/520	200	156	290	50	-	-	-	520	442	582
		220	YH10WZ-204/532	204	159	296	50	-	-	-	532	452	594	600	65
		220	YH10WZ-216/562	216	168.5	314	50	-	-	-	562	478	630
	Neutral Point Type	220	YH1.5W-144/320	144	116	205	50	-	-	-	320	299	-

Arrester structure: Gapless (W), with series gap (C), with parallel gap (B).

Arrester Old and New Model Comparison Table
Application	System Rated Voltage	New Standard GB11032-2000		Old Standard GB11032-1929		2ms Square Wave Voltage (A)
Application	System Rated Voltage	Model	Continuous Operating Voltage (kV)	Model	Continuous Operating Voltage (kV)	2ms Square Wave Voltage (A)
Distribution	3	YH5WS-5/15	4	HY5WS-3.8/15	2	100
	6	YH5WS-10/30	8	HY5WS-7.6/30	4	100
	10	YH5WS-17/50	13.6	HY5WS-12.7/50	6.6	100
Station	3	YH5WZ-5/13.5	4	HY5WZ-3.8/13.5	2	150
	6	YH5WZ-10/27	8	HY5WZ-7.6/27	4	150
	10	YH5WZ-17/45	13.6	HY5WZ-12.5/45	6.6	150
	35	YH5WZ-51/134	40.8	HY5WZ-42/134	23.4	400
	110	Y10W-96/235	75	Y10W-96/238	73	600
		Y10W-100/260	78	Y10W-100/260	73	600
		Y10W-102/266	79.6	Y10W-102/255	73	600
		Y10W-108/281	84	Y10W-108/268	73	600
	220	Y10W-192/500	150	Y10W-192/476	146	800
		Y10W-200/520	156	Y10W-200/520	146	800
		Y10W-204/532	159	/	/	800
		Y10W-216/562	168.5	/	/	800
Capacitor Bank	3	YH5WR-5/13.5	4	HY5WR-3.8/13.5	2	400
	6	YH5WR-10/27	8	HY5WR-7.6/27	4	400
	10	YH5WR-17/45	13.6	HY5WR-12.7/45	6.6	400
	35	YH5WR-51/134	40.8	HY5WR-42/134	23.4	400
	35	YH10WR-51/134	40.8	HY10WR-42/134	23.4	400
Motor	3.15	YH2.5WD-4/9.5	3.25	HY2.5WD-3.8/9.5	2	200
	6.3	YH2.5WD-8/18.7	6.3	HY2.5WD-7.6/19	4	200
	10.5	YH2.5WD-13.5/31	10.5	HY2.5WD-12.7/31	6.6	200
Generator	3.15	YH5WD-4/9.5	3.2	HY5WD-3.8/9.5	2	400
	6.3	YH5WD-8/18.7	6.3	HY5WD-7.6/19	4	400
	10.5	YH5WD-13.5/31	10.5	HY5WD-12.7/31	6.6	400
	13.8	YH5WD-17.5/40	13.8	HY5WD-16.7/40	9.8	400
	15.75	YH5WD-20/45	15.8	HY5WD-19/45	16	400
Motor Neutral Point	3.15	YH1.5WD-2.4/6	1.9	HY1WD-2.3/6		200
	6.3	YH1.5WD-4.8/12	3.8	HY1WD-4.6/12		200
	10.5	YH1.5WD-8/19	6.4	HY1WD-7.6/19		200

Note: (W) is gapless, (C) is with series gap, (B) is with parallel gap. To facilitate users in making reasonable product selection and avoid misunderstandings during purchase and use, Gaosuo Electric Co., Ltd. has listed the new and old models and related parameters of zinc oxide arrester products in the above table. If there are special requirements, please specify in detail.
