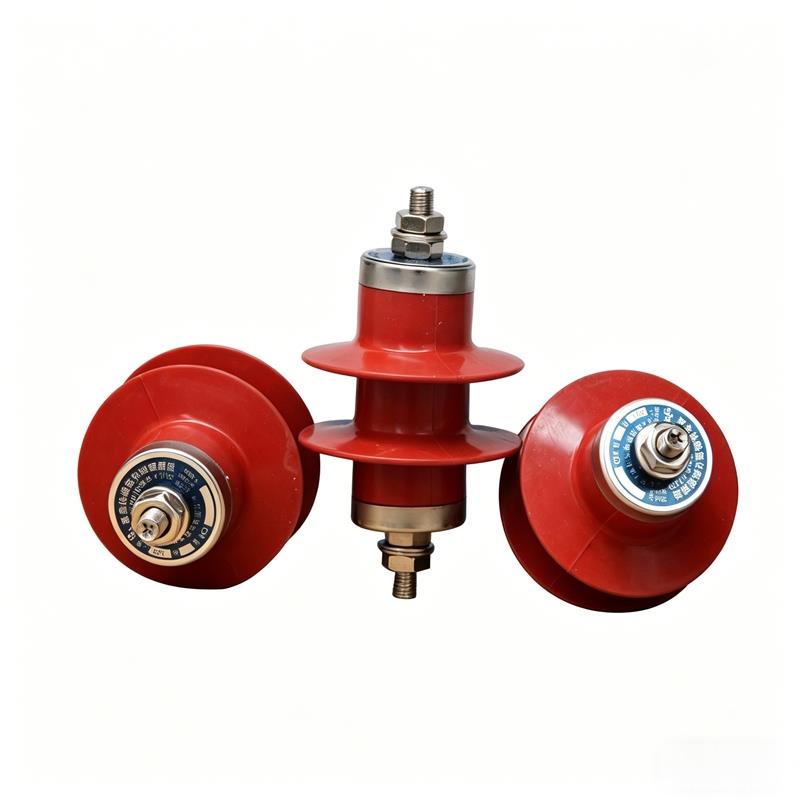

HY5WS-7.6/30 6kV Neutral Point Type Zinc Oxide Arrester Composite Housing Technology

Product Overview

Power system overvoltage is the core hazard causing equipment insulation breakdown and line tripping. The HY5WS-7.6/30 6kV neutral point type zinc oxide arrester adopts composite housing technology, specially designed for neutral point overvoltage protection in 6kV distribution systems. Its core zinc oxide resistor discs have excellent nonlinear volt-ampere characteristics. Under normal conditions, leakage current is only microampere level. When subjected to lightning or switching overvoltages, it instantly conducts, limiting residual voltage within the equipment's withstand level and avoiding insulation damage. Compared with traditional porcelain housing arresters, the composite housing structure combines explosion-proof, aging resistance, hydrophobicity and sealing performance, greatly improving operational reliability.

Main Technical Parameters

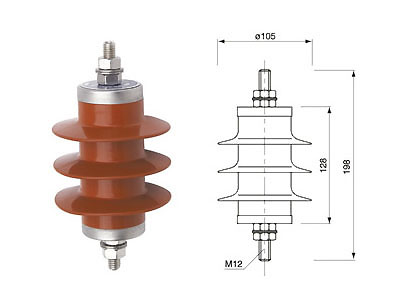

Dimension&appearance

Technical Features

• HY5WS-7.6/30 adopts high nonlinearity zinc oxide resistor discs with low residual voltage and fast response, effectively protecting 6kV system insulation.
• Composite housing material has excellent dielectric strength, anti-tracking and anti-corrosion performance, suitable for high humidity and polluted environments.
• Reliable sealing structure, moisture-proof and explosion-proof, high long-term operational stability, long maintenance-free cycle.
• Large current carrying capacity, square wave withstand 75A, high current impulse withstand 40kA, can withstand multiple lightning strikes.
• 0.75U1mA leakage current ≤50μA, low power consumption, significant energy saving effect.

Application Scenarios

This series of arresters is widely used for neutral point overvoltage protection in 6kV power generation, transmission, transformation and distribution systems, especially suitable for compact substations, ring main units, cable branch boxes and other locations. Note that HY5WS-7.6/30 cannot be used to limit resonance overvoltage; system resonance suppression requires dedicated suppression devices. The composite housing structure provides explosion-proof advantages in flammable and explosive locations such as coal mines and chemical plants.

Applicable Standards

Product model is compiled according to JB/T8459-1996 "Arrester Product Model Designation Method". Gapless products comply with GB11032-2000 "AC Gapless Metal Oxide Arresters"; gapped products comply with JB/T9672-2005 "Metal Oxide Arresters with Series Gaps". Important parameters and configuration methods shall be modified and implemented according to DL/T620-1997 "Overvoltage Protection and Insulation Coordination of AC Electrical Installations".

Selection Guide

Select the corresponding model based on the system rated voltage and neutral point earthing method: HY5WS-7.6/30 is suitable for 6kV neutral point ungrounded or arc suppression coil grounded systems; HY5WS-10/30 is suitable for scenarios requiring higher insulation levels; HY5CS-7.6/27 is a gapped type, suitable for occasions requiring isolation of continuous voltage. When selecting, verify whether the continuous operating voltage and residual voltage are below the equipment insulation level.

Summary

The HY5WS-7.6/30 6kV neutral point type zinc oxide arrester provides reliable overvoltage protection for distribution systems with composite housing technology and excellent nonlinear characteristics. Its advantages of low residual voltage, high current carrying capacity and maintenance-free operation can significantly improve power supply continuity and reduce the risk of equipment damage.
