35kV Station Type Zinc Oxide Arrester HY5WZ-51/134

Product Overview

Metal oxide arresters (zinc oxide arresters) produced and sold are currently the best type of overvoltage protection devices, widely used in power generation, transmission, transformation and distribution systems to protect the insulation of electrical equipment from overvoltage damage. Their core components adopt excellent "nonlinear volt-ampere" characteristics, greatly improving overvoltage current carrying capacity, thus bringing fundamental changes to arrester characteristics. Under normal operating voltage, the current through the arrester is only microampere level. When subjected to overvoltage, due to the nonlinearity of zinc oxide resistance, the current through the arrester instantly reaches thousands of amperes, and the arrester is in a conducting state, releasing overvoltage energy, thereby effectively limiting overvoltage damage to transmission and transformation equipment.

Organic housing metal oxide arresters are a scientific research achievement combining organic insulation materials with traditional porcelain housing metal oxide arrester technology advantages. They not only have the advantages of porcelain housing metal oxide arresters, but also have good electrical insulation performance, high dielectric strength, anti-tracking, anti-corrosion, heat resistance, cold resistance, aging resistance, explosion-proof, hydrophobicity, and good sealing performance. This 35kV station type zinc oxide arrester is a key device for power system lightning protection.

HY5WZ-51/134 zinc oxide arrester is suitable for AC 220kV and below power generation, transmission, transformation and distribution systems, used to limit the amplitude of lightning and system internal operating overvoltages to specified levels, and is the basic equipment for system insulation coordination. It is the ideal lightning protection component for integrated, modular medium and high voltage transmission and transformation complete equipment. Station type arrester and capacitor type arrester models include HY5WZ-51/134, HY5WZ-42/124, HY5WZ-42/134, HY5WR-51/134, HY5CR-42/124, HY5WR-42/134.

Applicable Standards

This product model is compiled according to JB/T8459-1996 "Arrester Product Model Designation Method". Gapless products comply with GB11032-2000 "AC Gapless Metal Oxide Arresters"; gapped products comply with JB/T9672-2005 "Metal Oxide Arresters with Series Gaps". Important parameters and configuration methods not clearly defined in the above standards shall be modified and implemented according to DL/T620-1997 "Overvoltage Protection and Insulation Coordination of AC Electrical Installations". Strict adherence to standards is the foundation for ensuring reliable performance and stable operation of zinc oxide arresters.

Main Technical Parameters

As can be seen from the above table, HY5WZ-51/134 as a 35kV station type zinc oxide arrester has a rated voltage of 51kV, continuous operating voltage of 40.8kV, lightning impulse residual voltage as low as 114kV, and square wave current capacity of 400A. These parameters ensure its strong overvoltage protection capability and operational reliability in 35kV station systems.

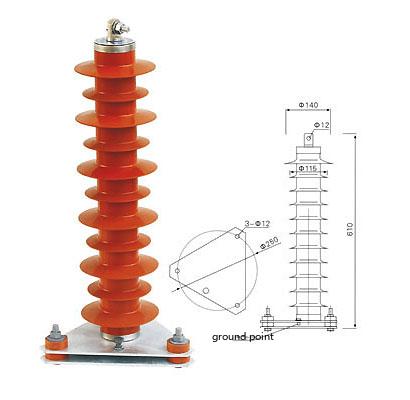

Outline Dimensions
