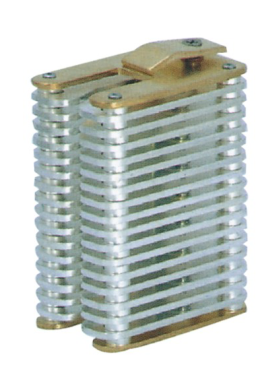

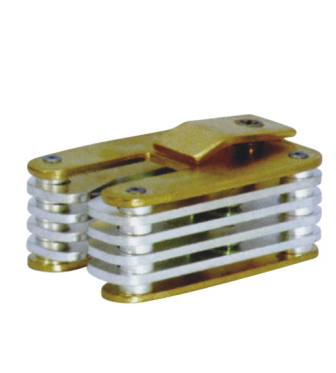

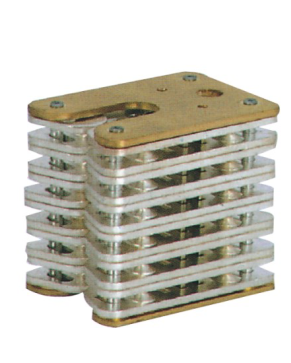

Tension Spring Flat Contact-Switchgear Moving Contact

Product Overview

The tension spring flat contact is suitable for moving/fixed contact connections in high-voltage switchgear. It is a commonly used switchgear moving contact and tulip contact product. With a tension spring design, it provides stable contact pressure and excellent conductivity, easy installation and replacement, making it a key conductive accessory for switchgear.

Structural Features

• Tension spring structure for uniform contact pressure and excellent conductivity
• Flat contact design for large contact area and low contact resistance
• Made of high-quality copper material for good conductivity and wear resistance
• Compact structure for easy installation and replacement, low maintenance cost
• Suitable for KYN, XGN, GCS and other types of high-voltage switchgear

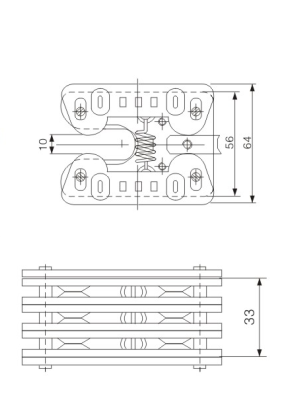

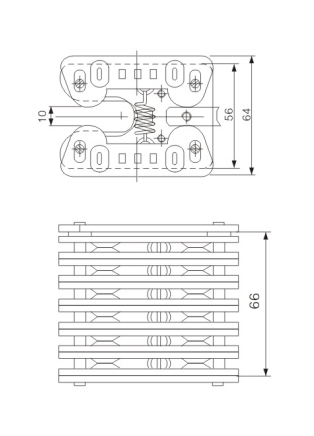

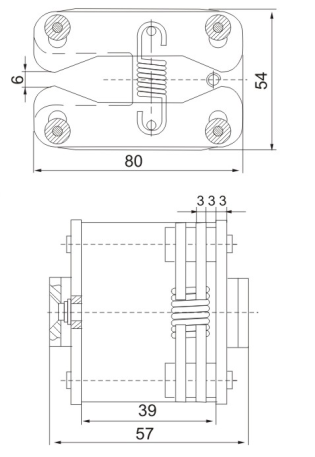

Technical Parameters

Operation and Maintenance

During installation, ensure the moving and fixed contacts are properly aligned and the tension spring pressure is adjusted appropriately. Regularly check the wear condition of the contact surfaces. If contact resistance increases or surface oxidation is found, clean or replace promptly. If the tension spring loses elasticity after long-term operation, replace the spring assembly to ensure contact reliability.
