WSK-H(TH) Adjustable Temperature and Humidity Controller-Switchgear Temperature Controller

Main Functions

It has one temperature and humidity control unit. The temperature setpoint is set by the user via a dial. It monitors the temperature and humidity changes of the被测 environment in real time. Once the humidity reaches a certain level or the temperature falls below (or exceeds) the set value, the controller drives the heater or fan to operate. Available in cooling type and heating type.

Technical Characteristics

● Power Supply: AC220V±10% 50Hz

● Humidity Setpoint: ≥85%RH activation, ≤75%RH reset

● Temperature Control: -30~100C (set by user)

● Control Accuracy: ±1C, hysteresis 4-6C

● Output: Resistive AC220V/7A (with source)

● Dimensions: 48×48×100mm3

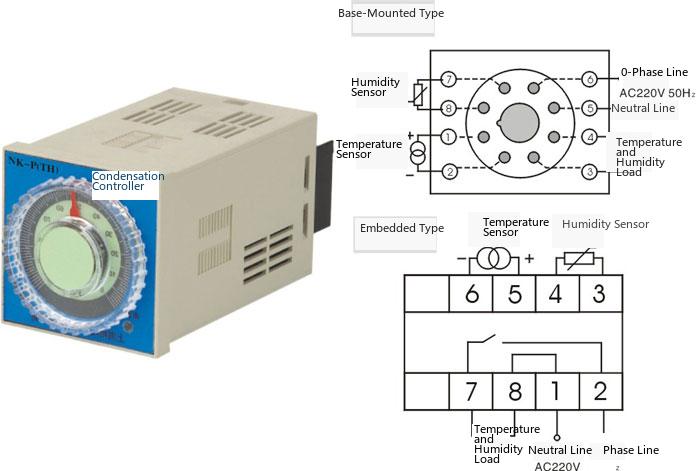

Installation Method

● Base Mounting: Fix the 8-pin relay base on a 35mm DIN rail or directly on the mounting plate through mounting holes.

● Flush Mounting: Cut a 45+0.5×45+0.5mm2 hole in the mounting panel and fix the controller on the panel using mounting brackets.
